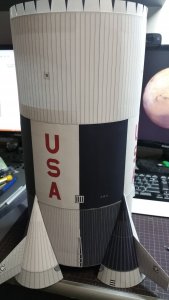

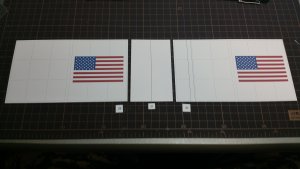

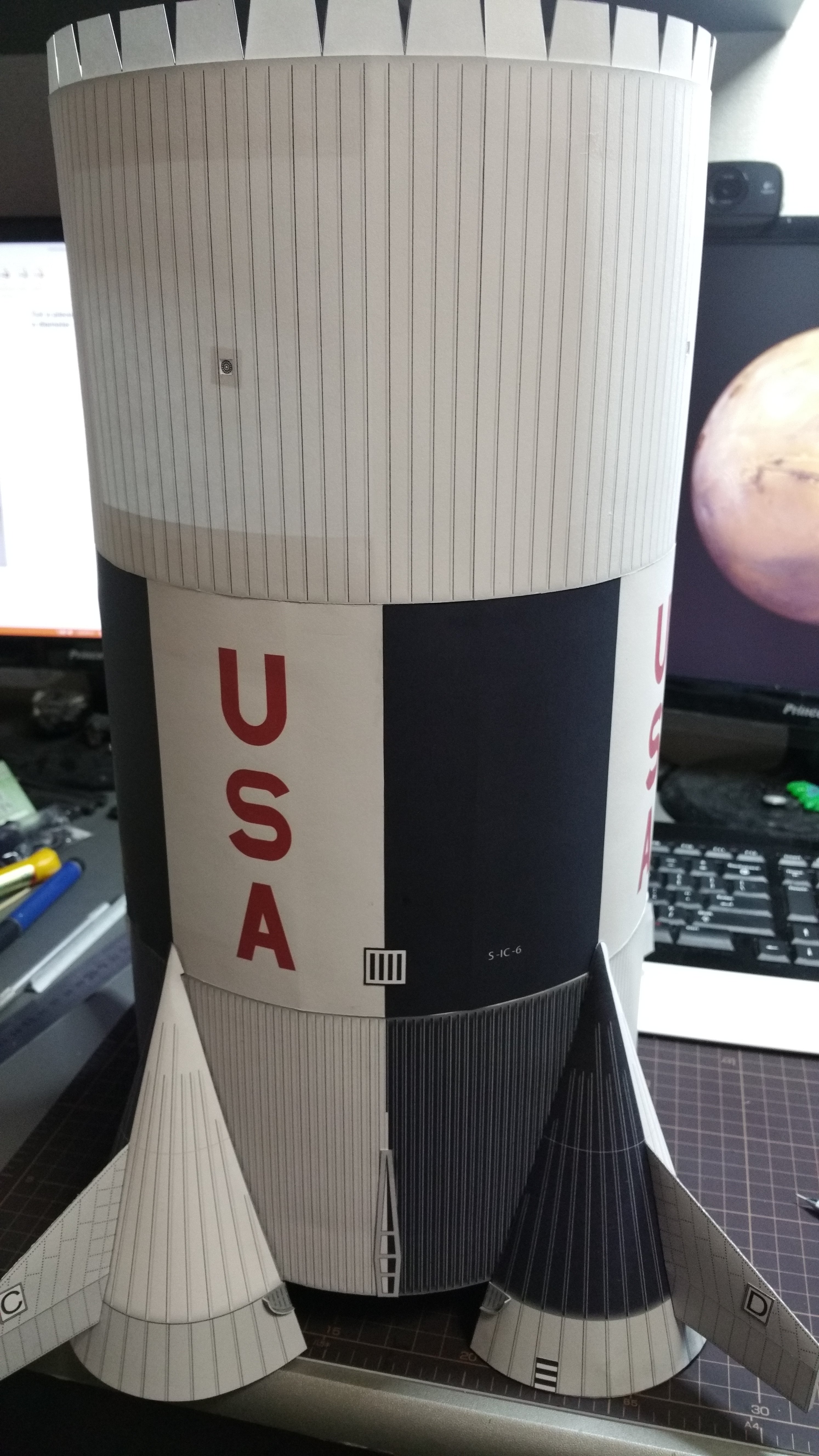

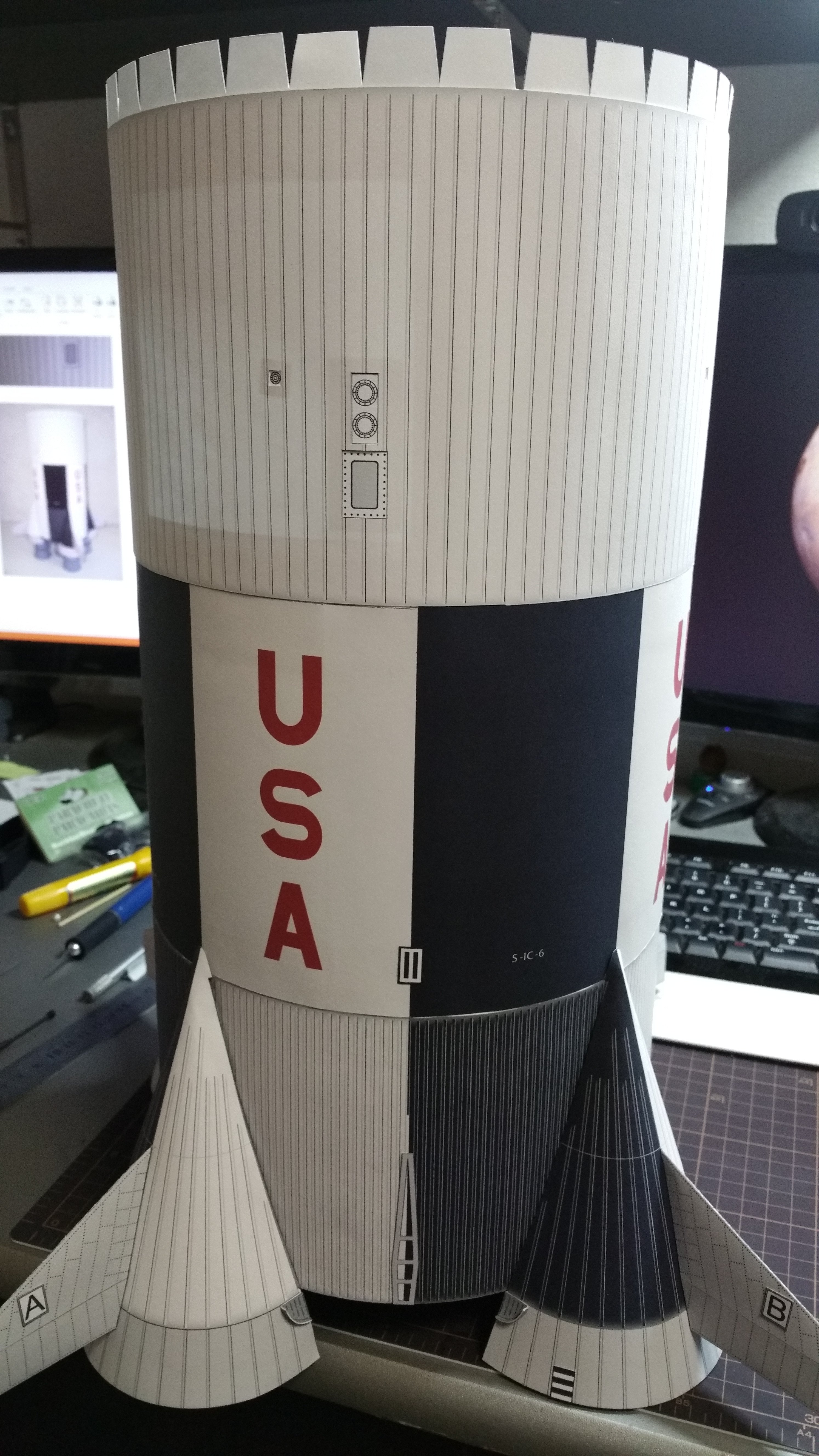

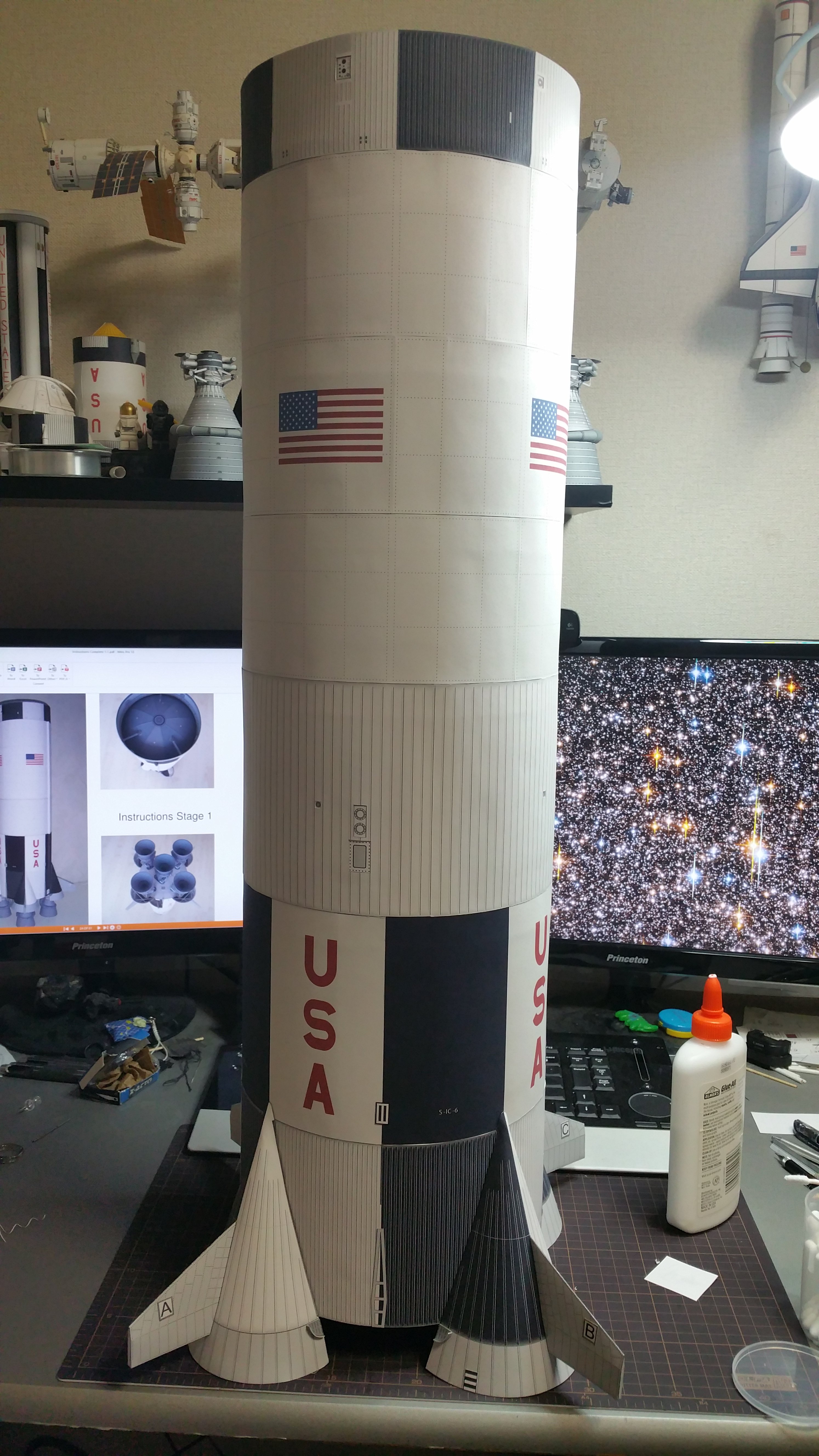

Okay, here are the markings as close as I could get them. Align the seams with the tunnel markings and keep the hatch positioned between the A and B fins.
Having a run at the Legal01 Re-envisioned Saturn V Mark III
- Thread starter SonOfAGun2501
- Start date
- Apr 5, 2013
- 14,415
- 11,044
Cannot wait to see what you'll do when you'll have completed the third stage. With your detail care I should expect an UHU scaled-down lunar module. At least it has foldable landing gear. Should be no problem to put it inside
And here I was thinking I'd complete the project before the end of the year.Cannot wait to see what you'll do when you'll have completed the third stage. With your detail care I should expect an UHU scaled-down lunar module. At least it has foldable landing gear. Should be no problem to put it inside
- Apr 5, 2013
- 14,415
- 11,044

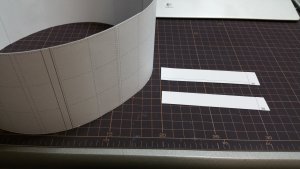

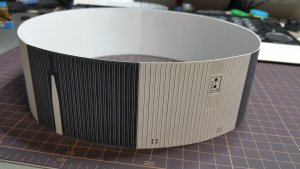

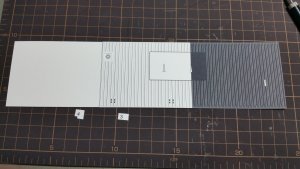

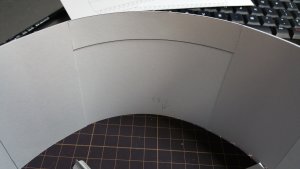

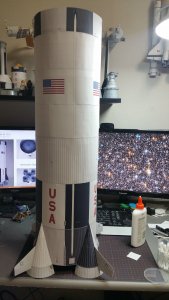

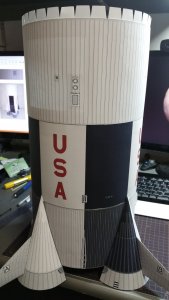

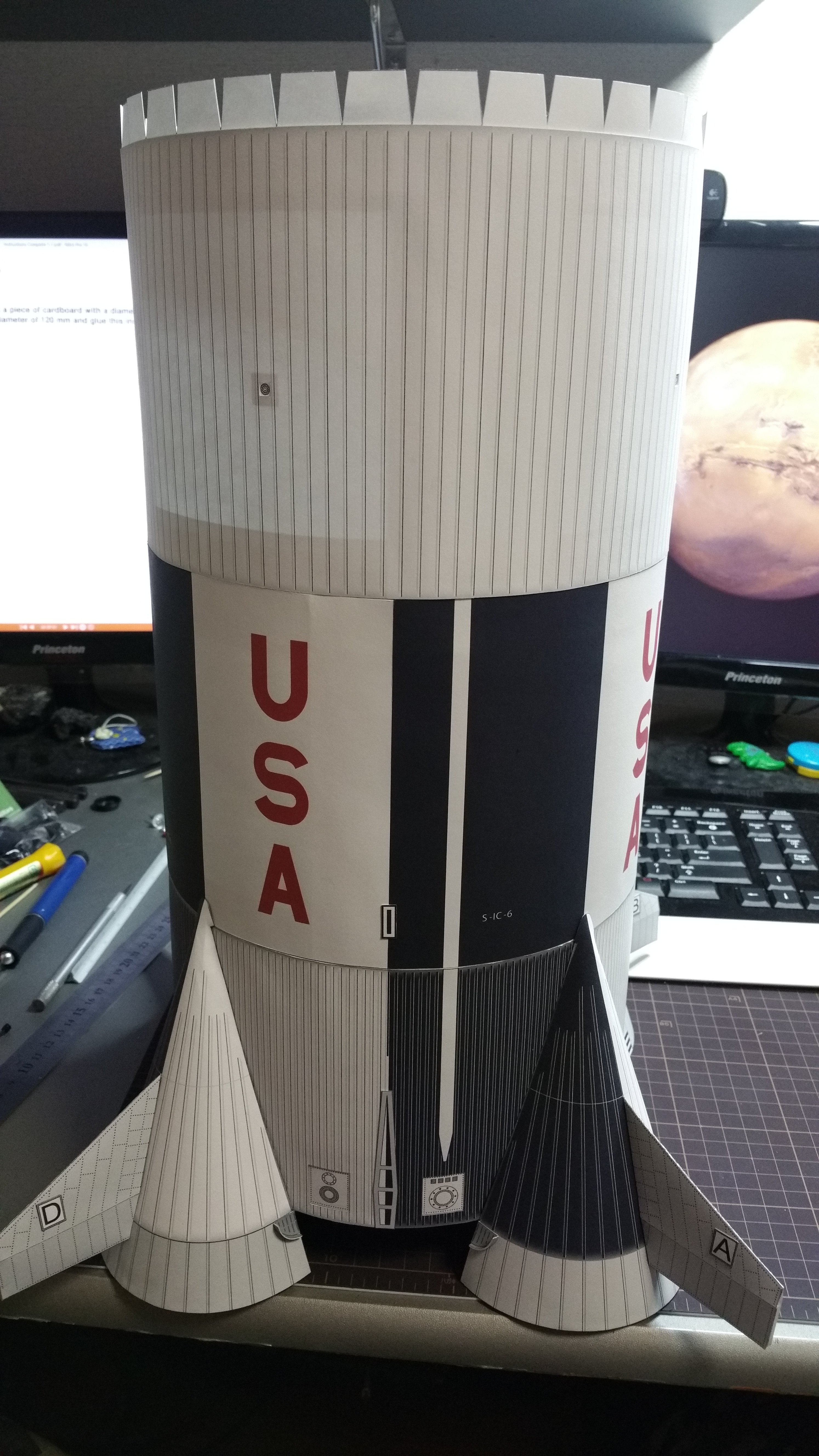

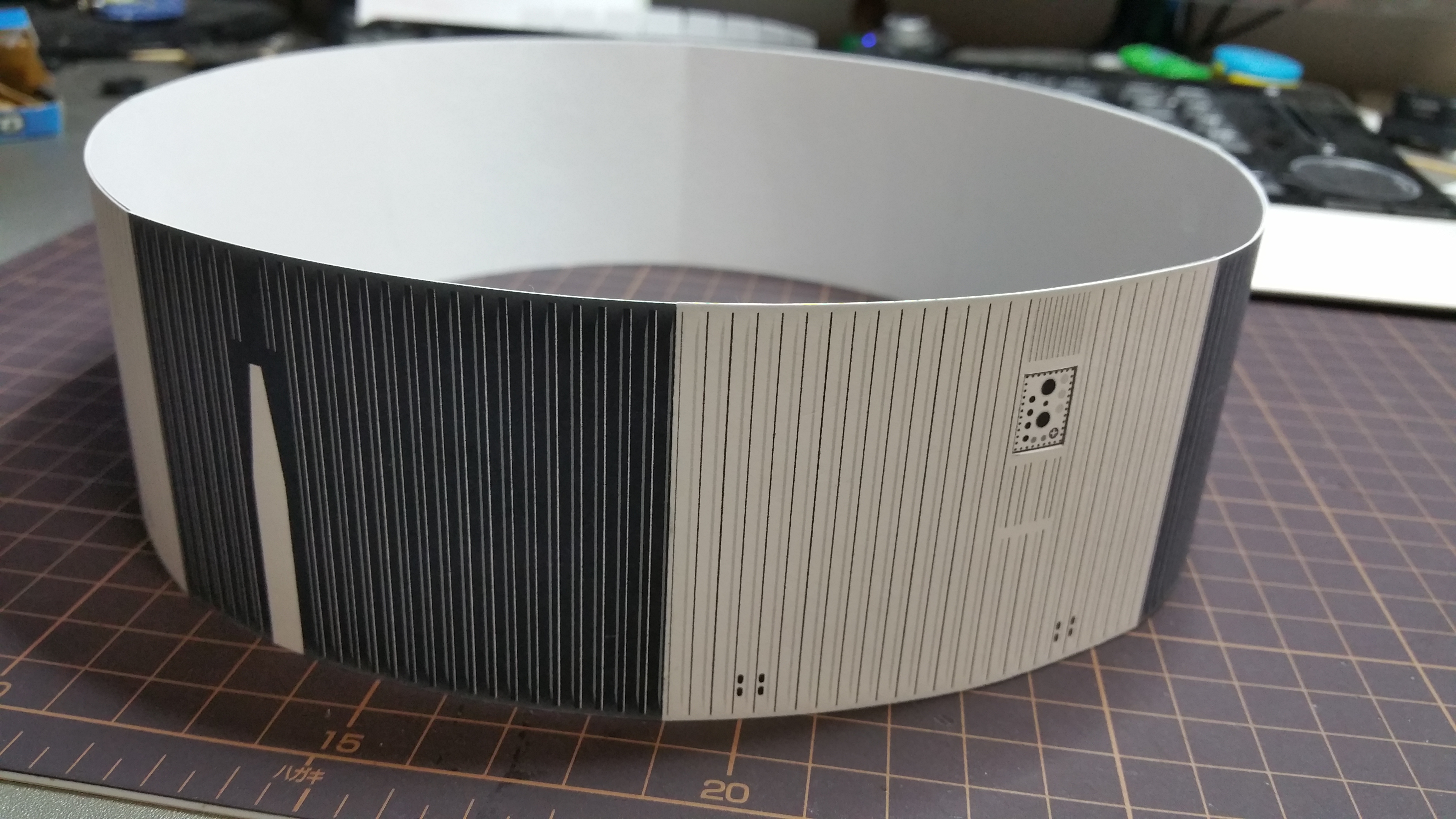

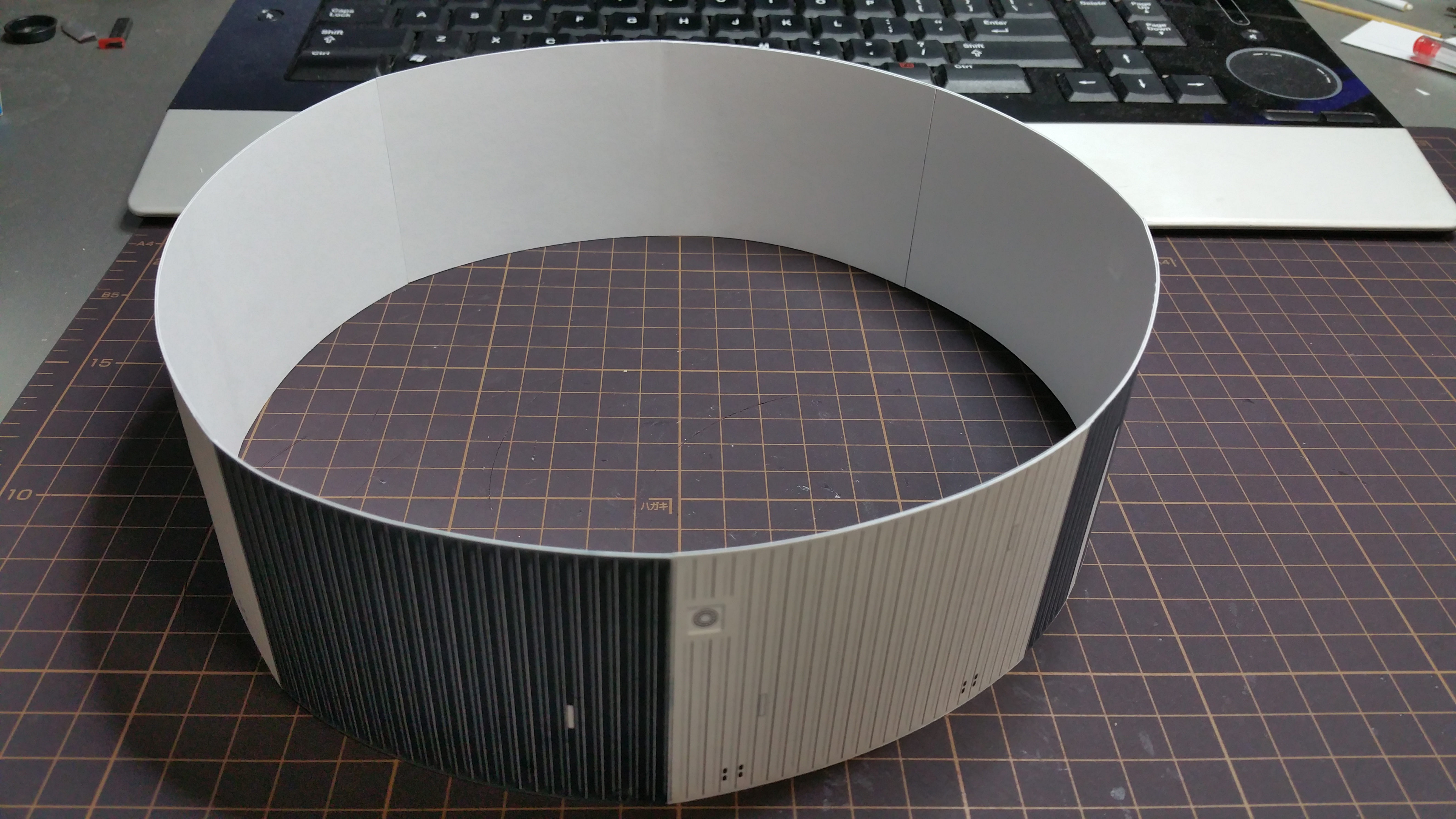

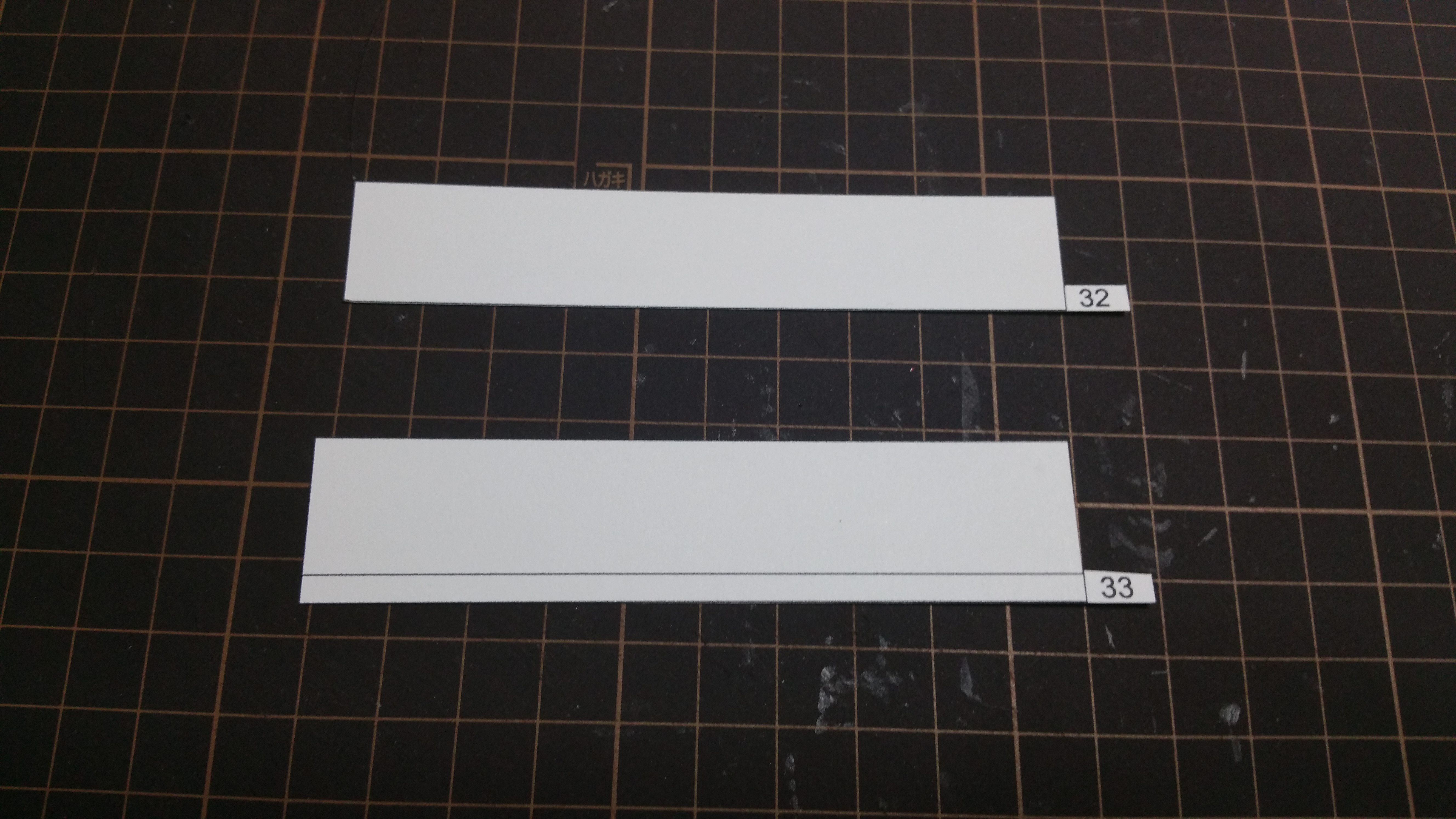

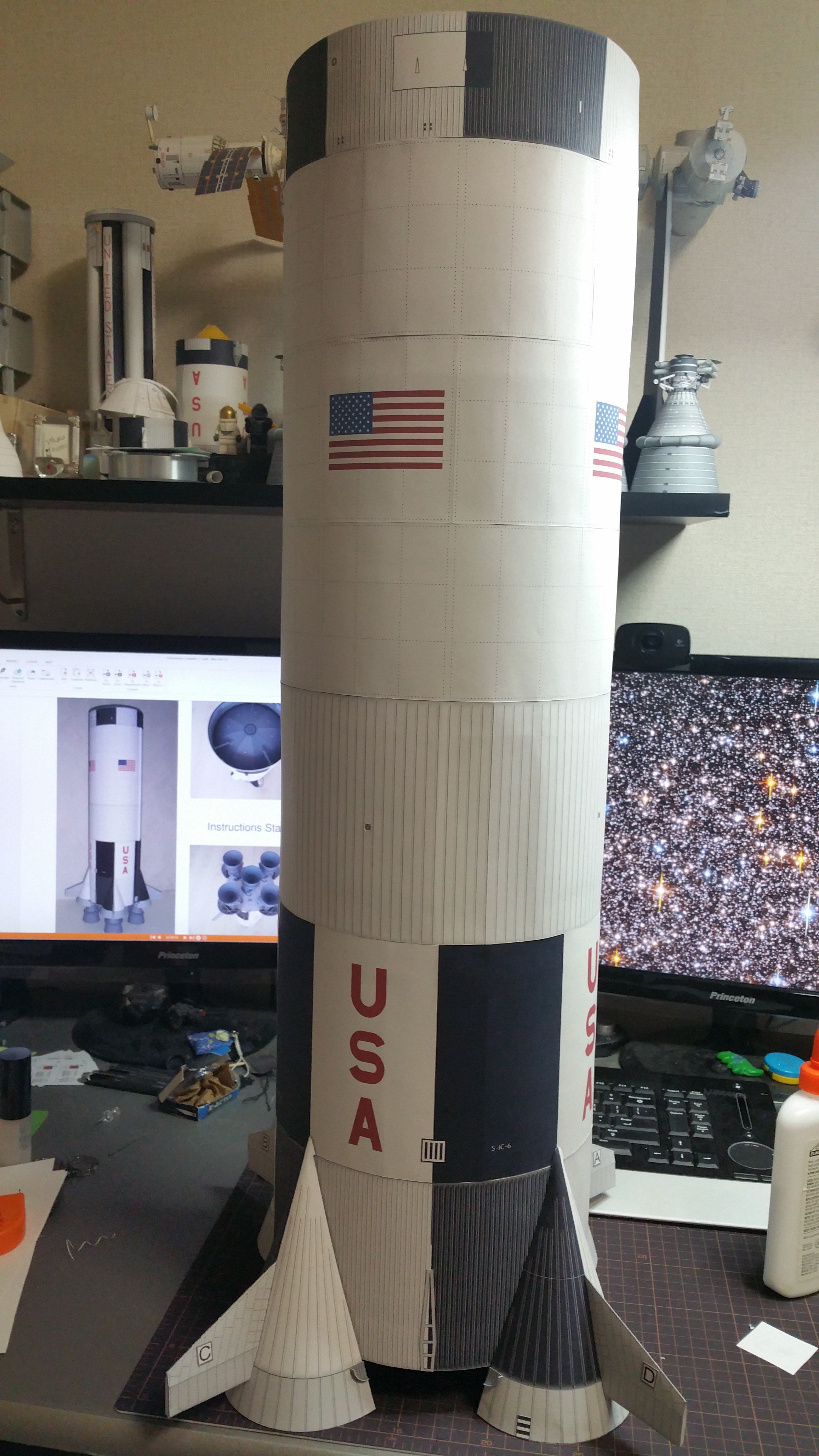

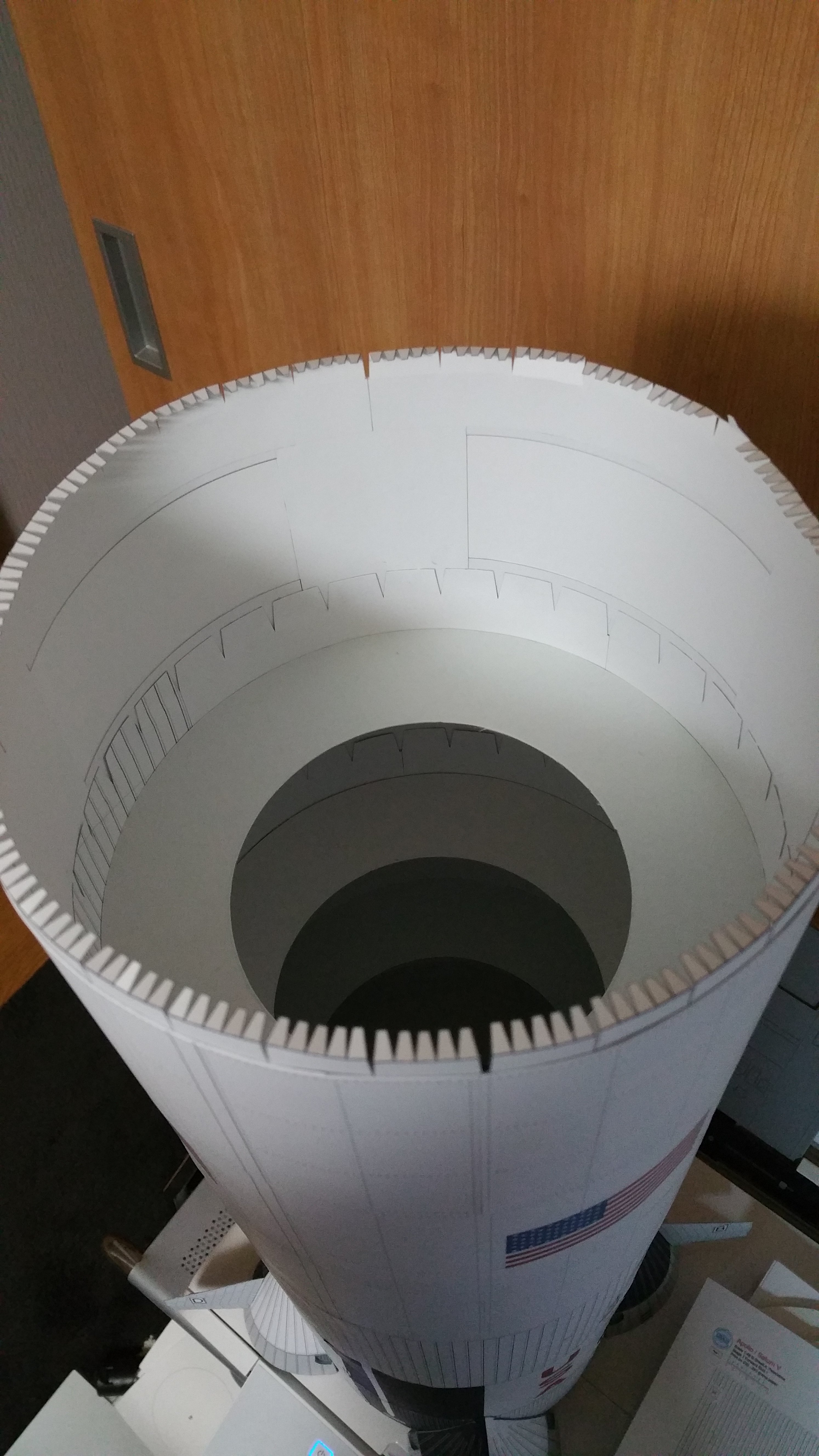

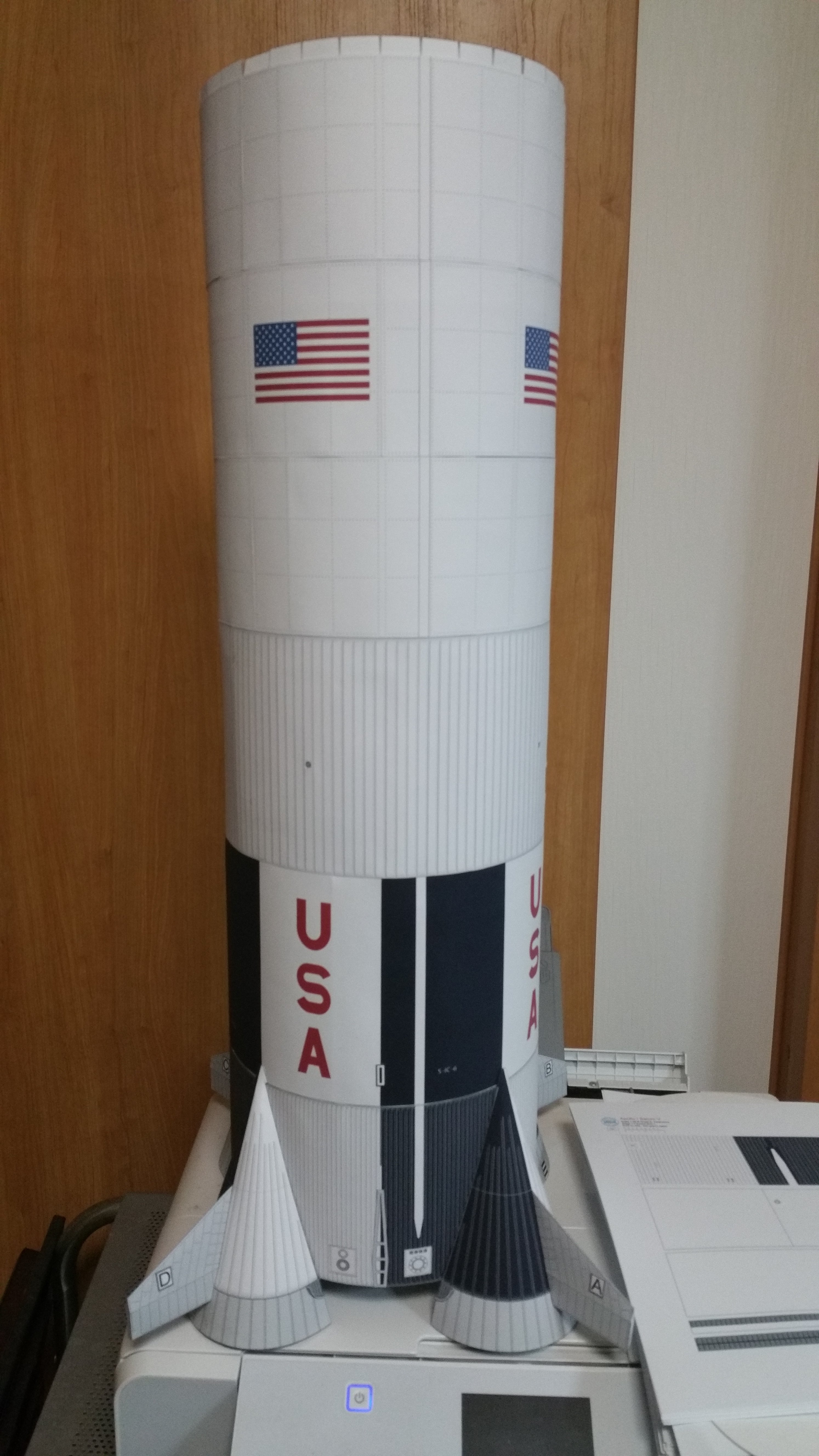

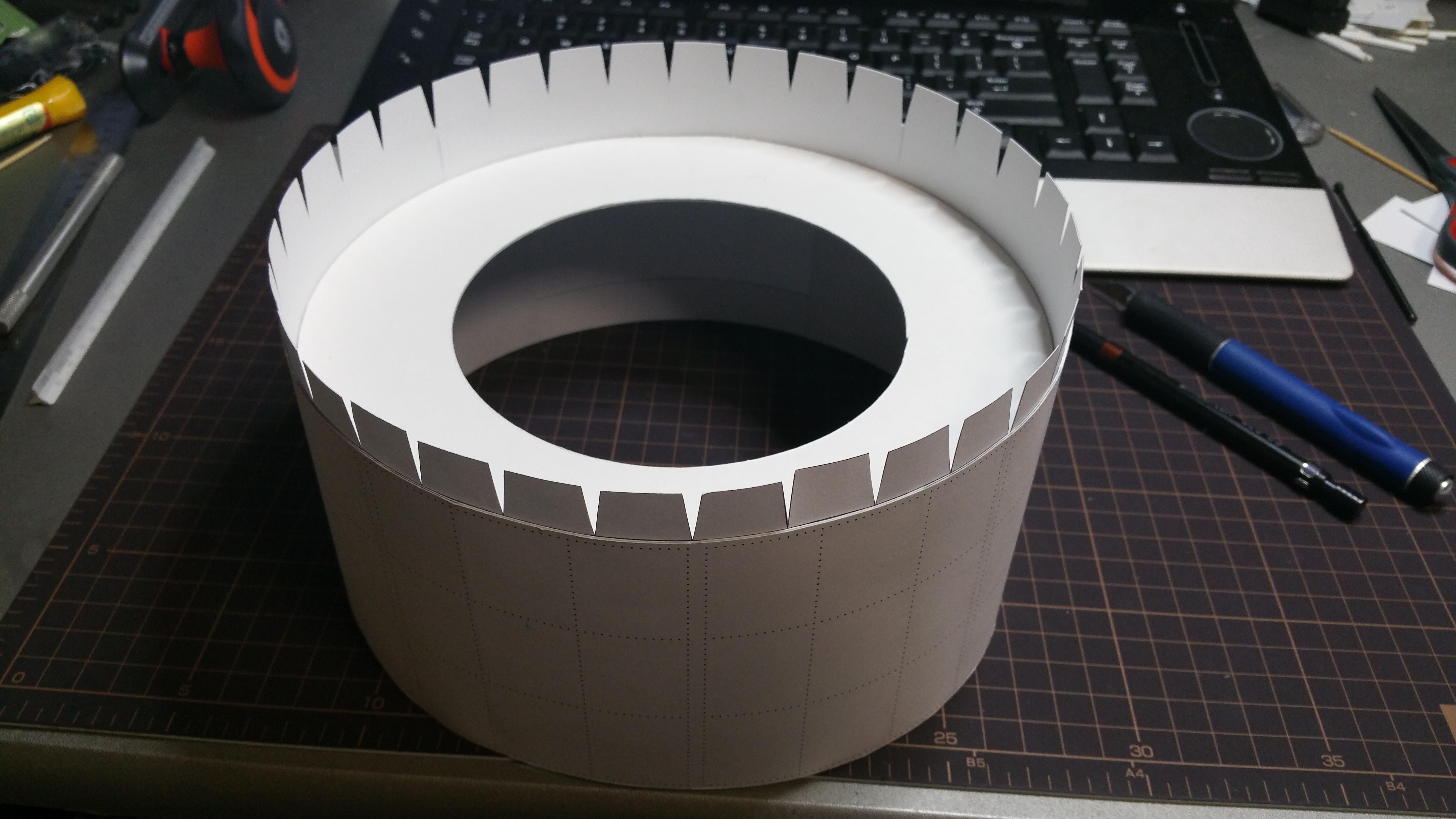

Onwards and upwards. The next three sections are principally the same. Where they join isn't as smooth as I would have liked but, it's still coming together nicely.

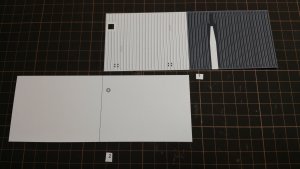

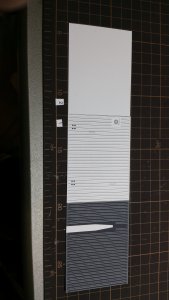

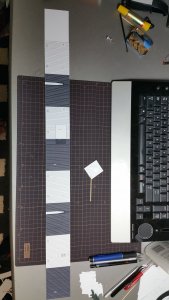

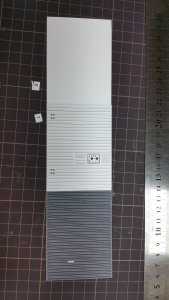

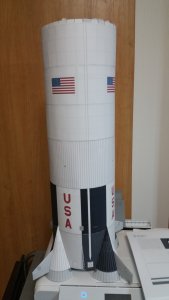

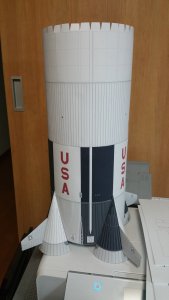

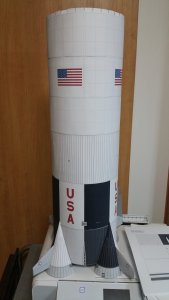

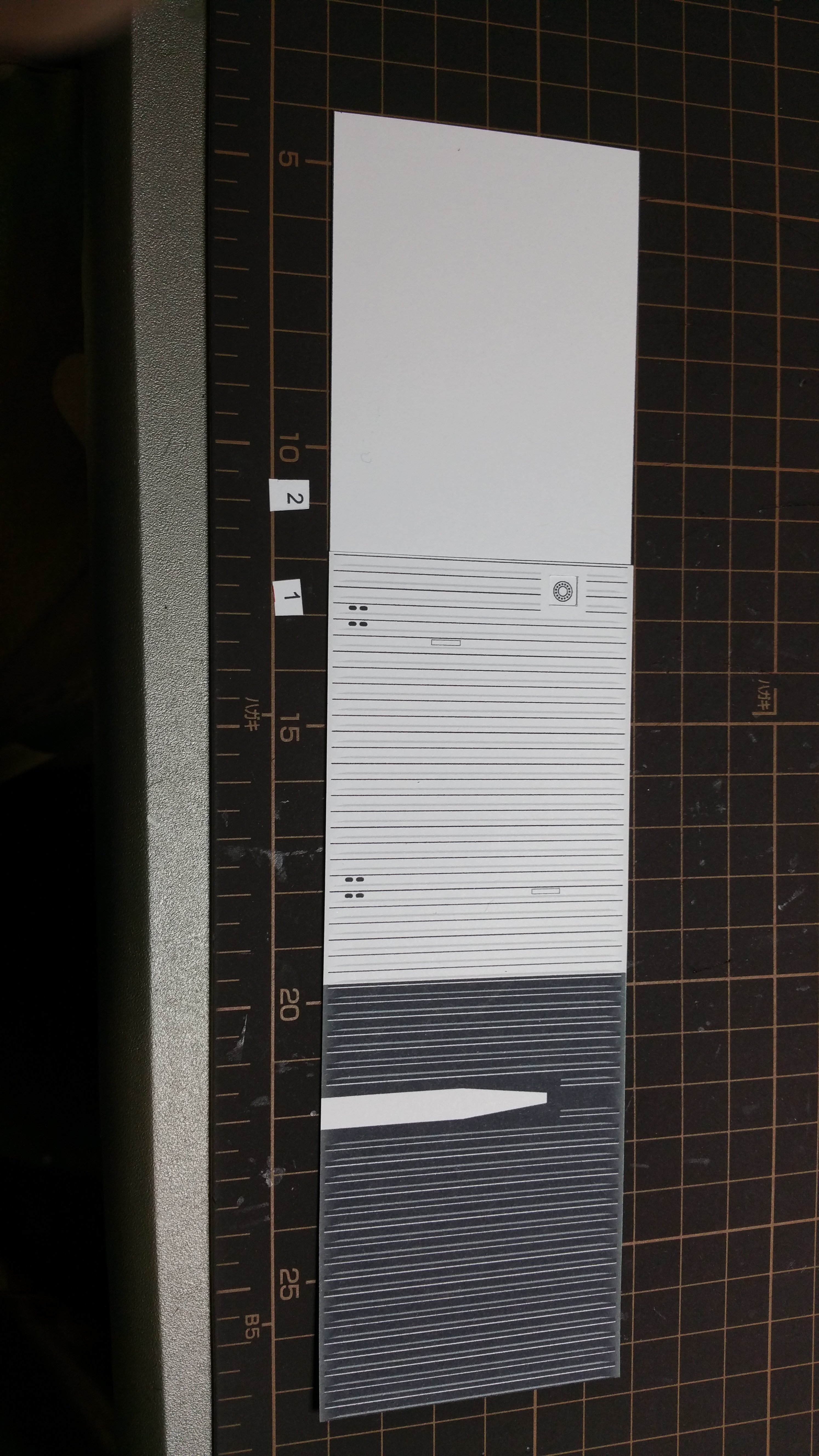

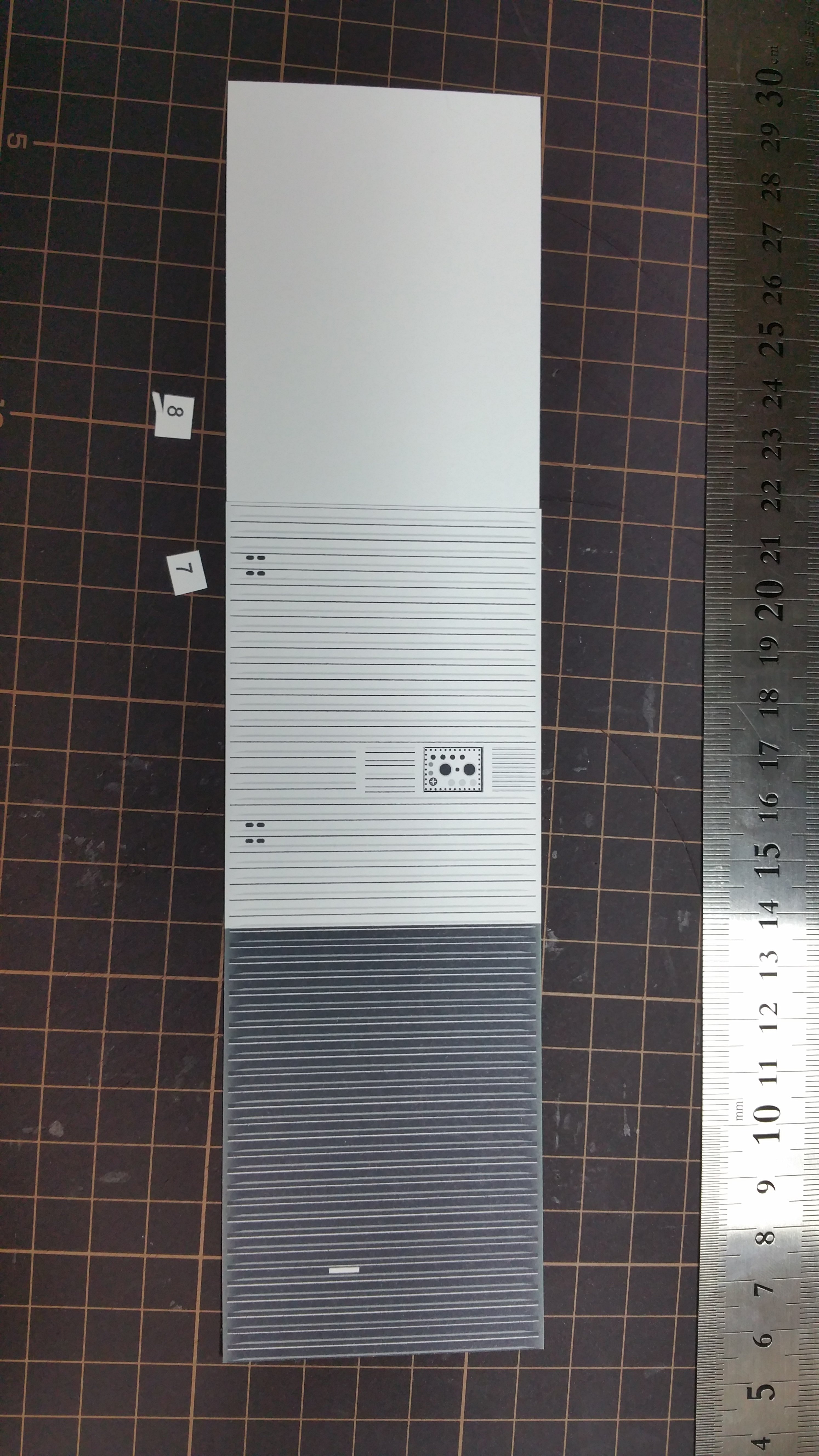

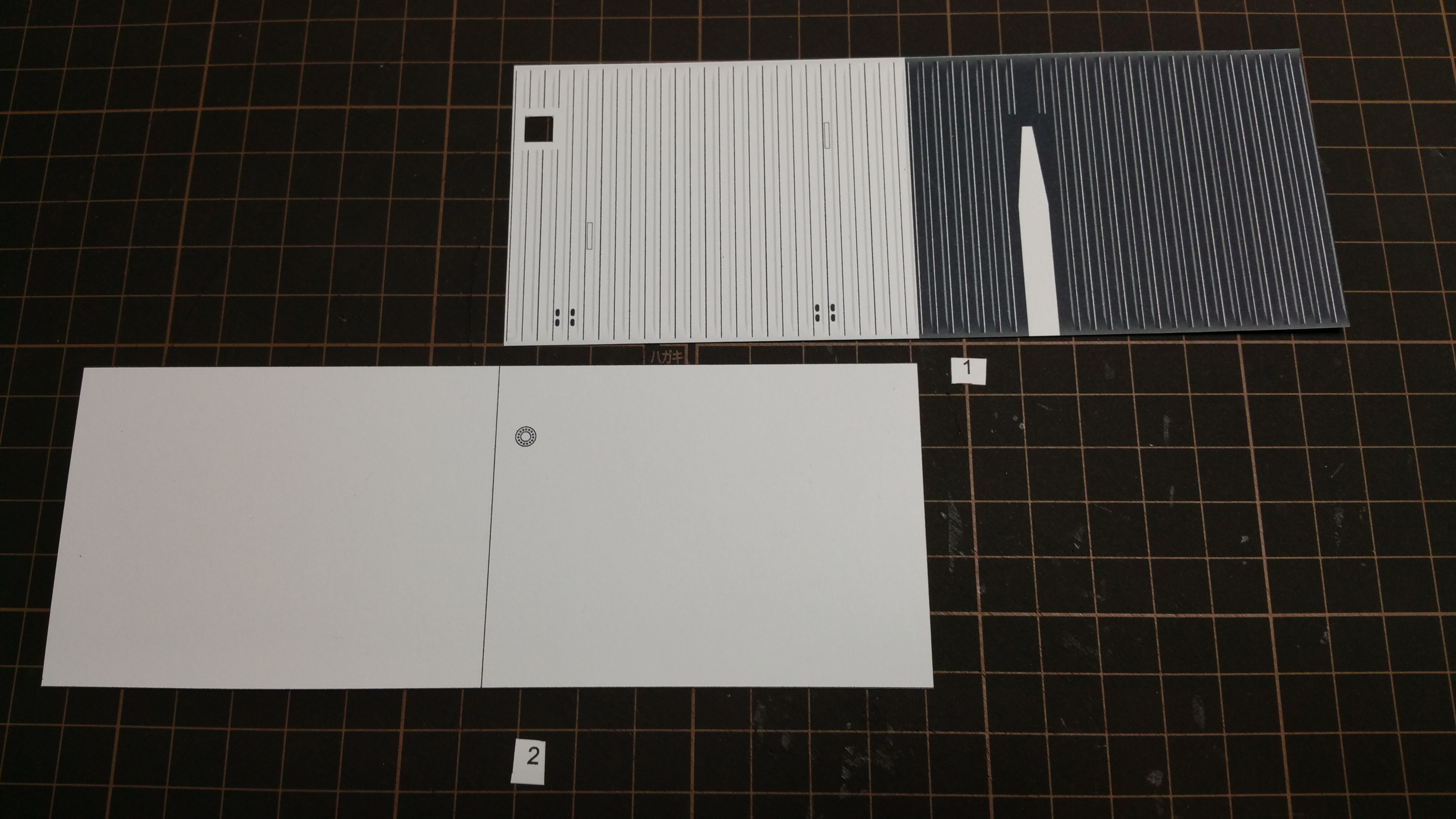

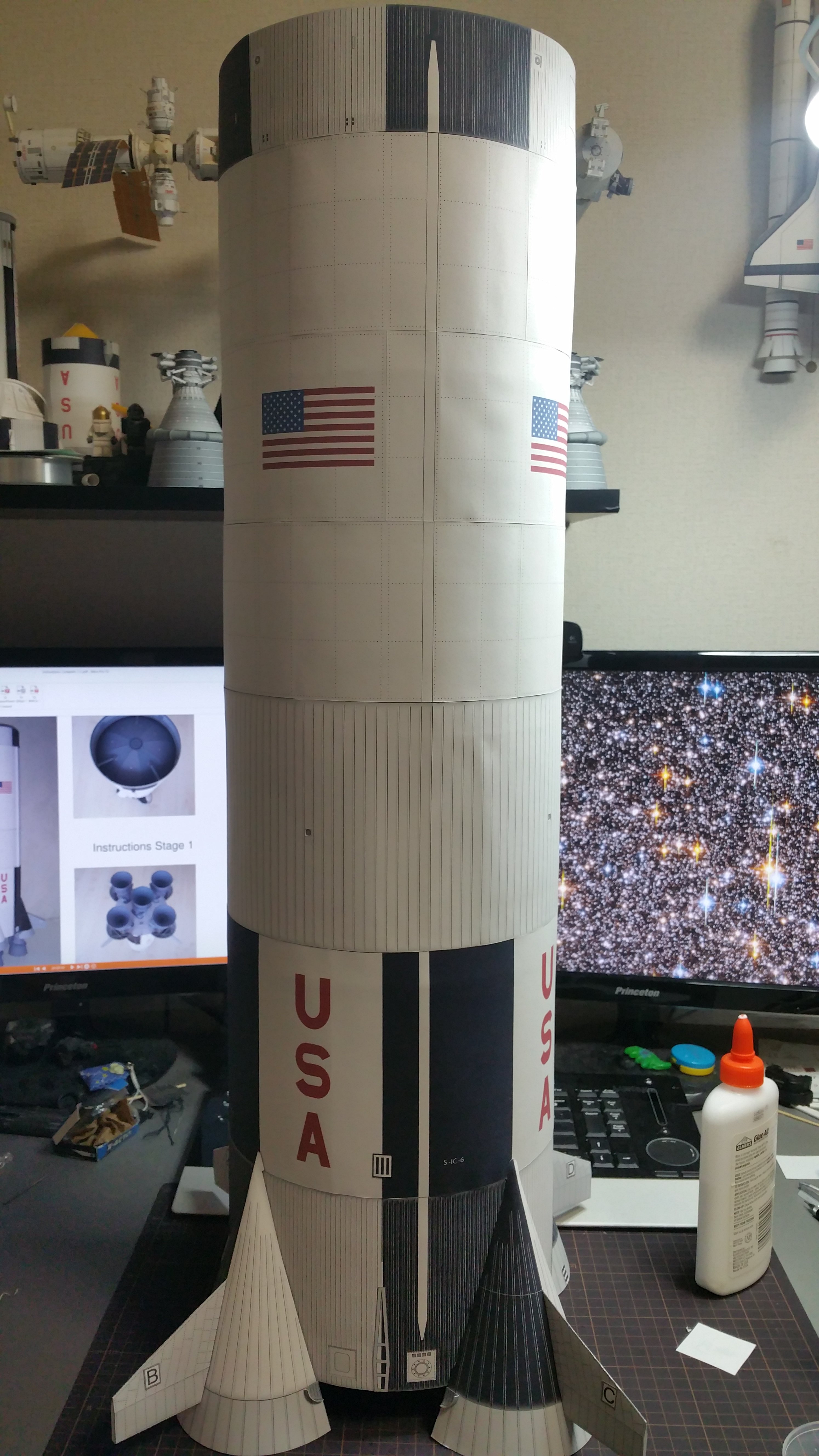

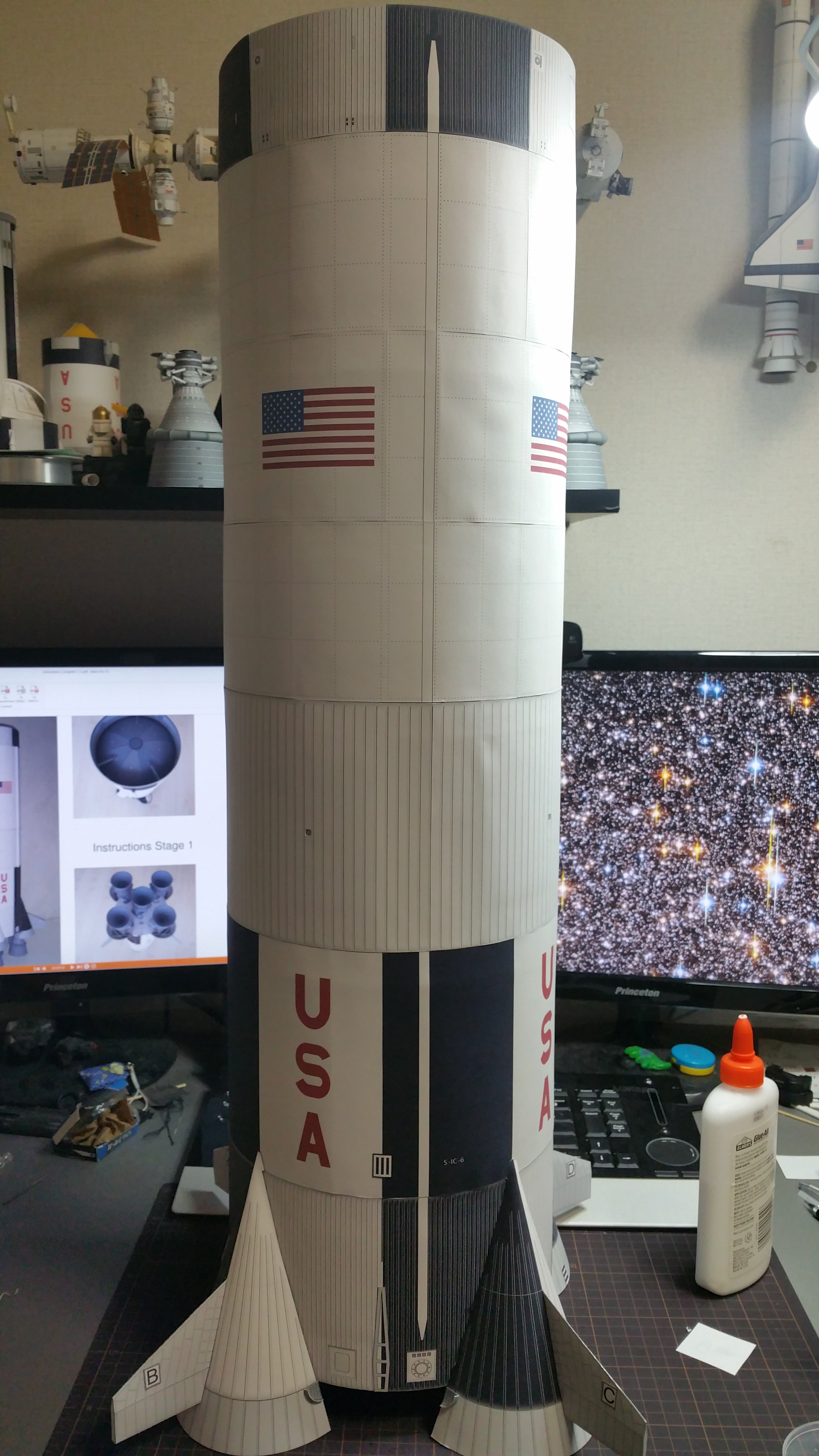

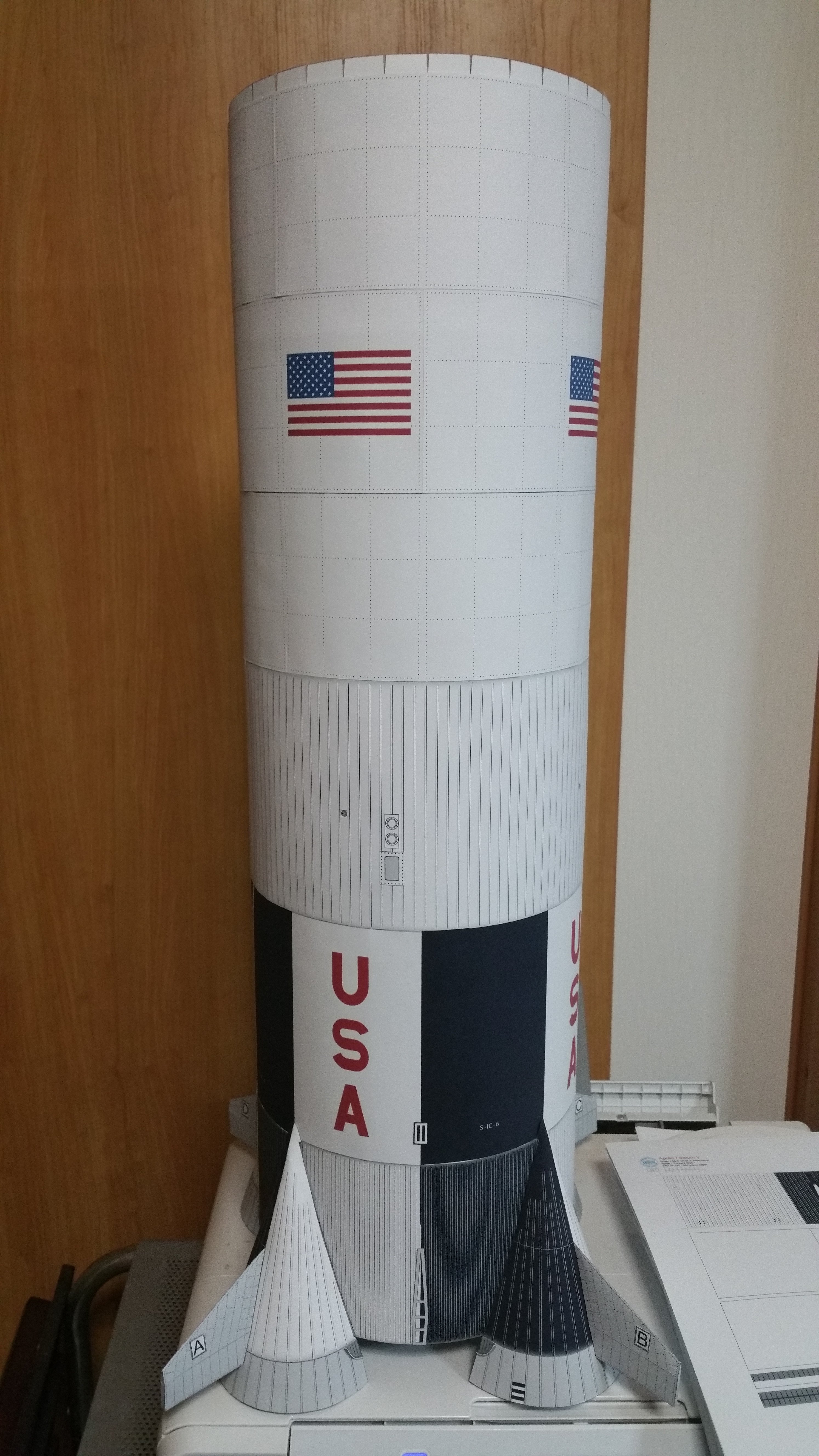

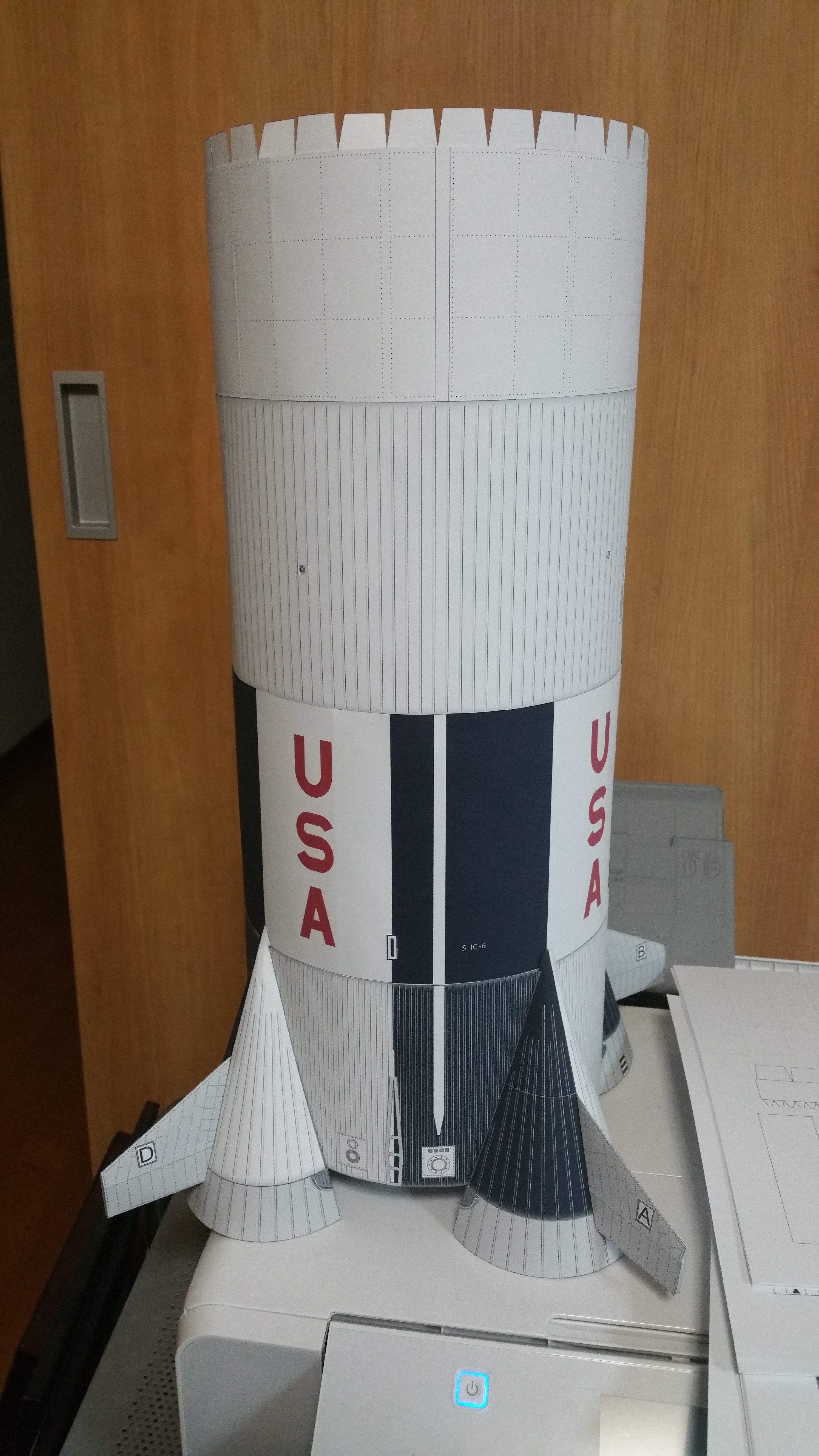

Here are the following two sections.

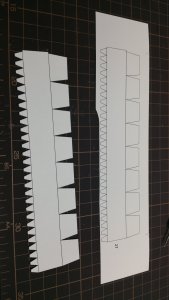

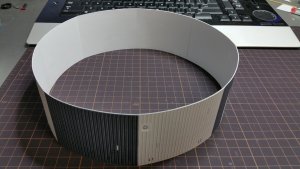

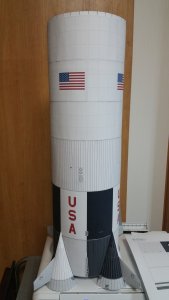

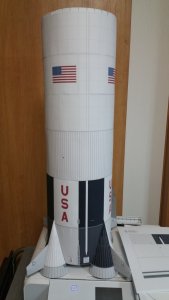

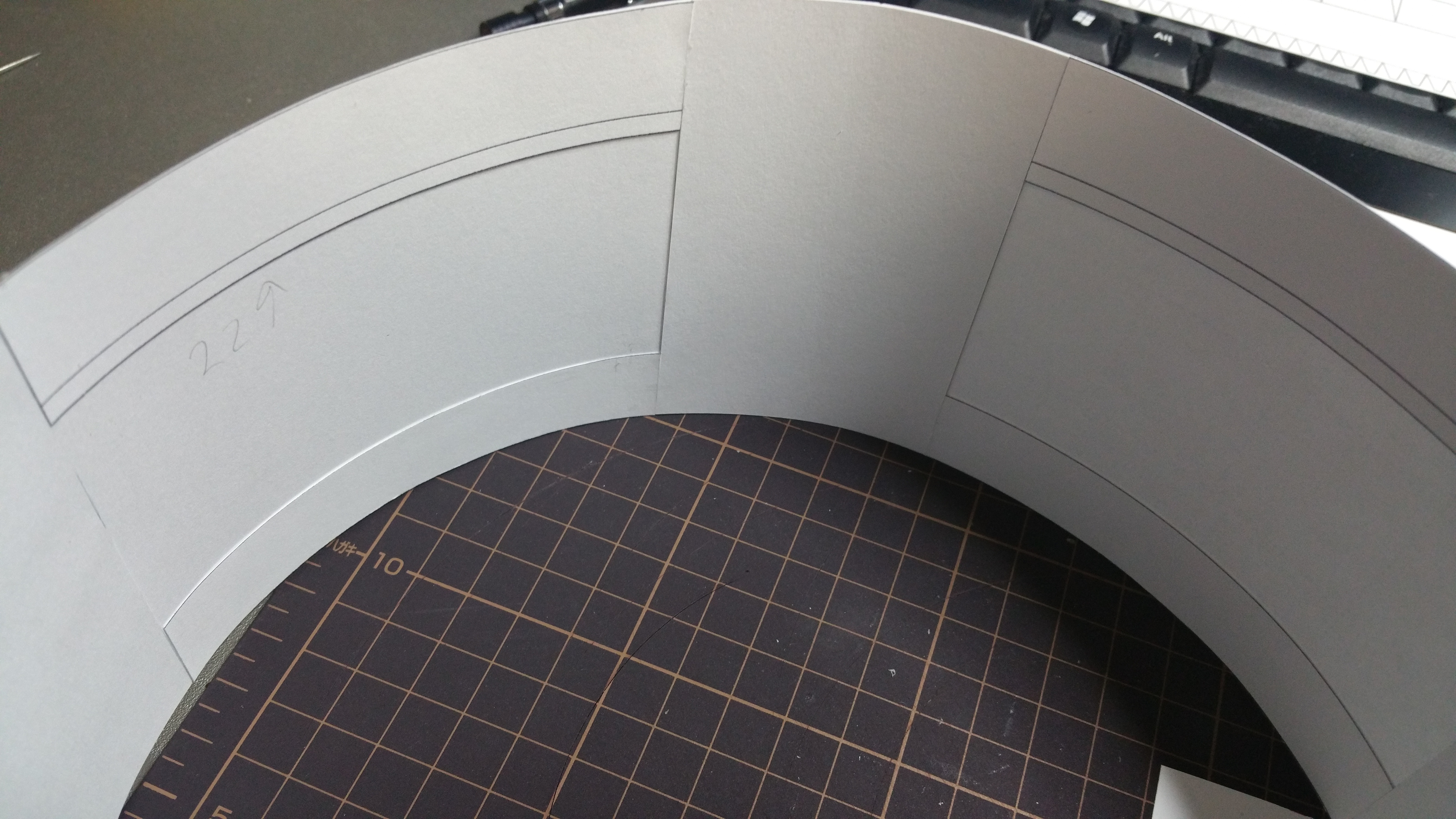

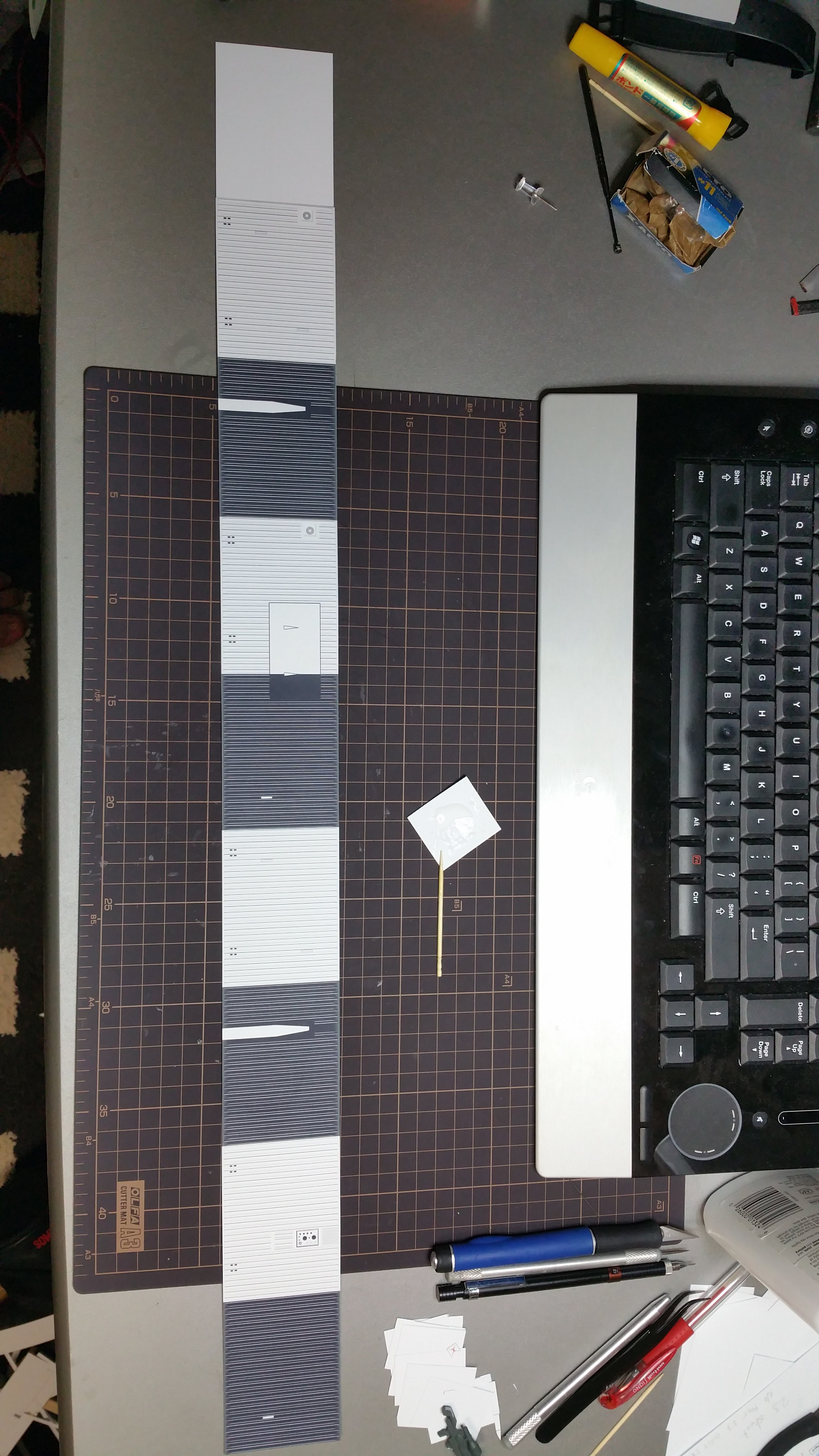

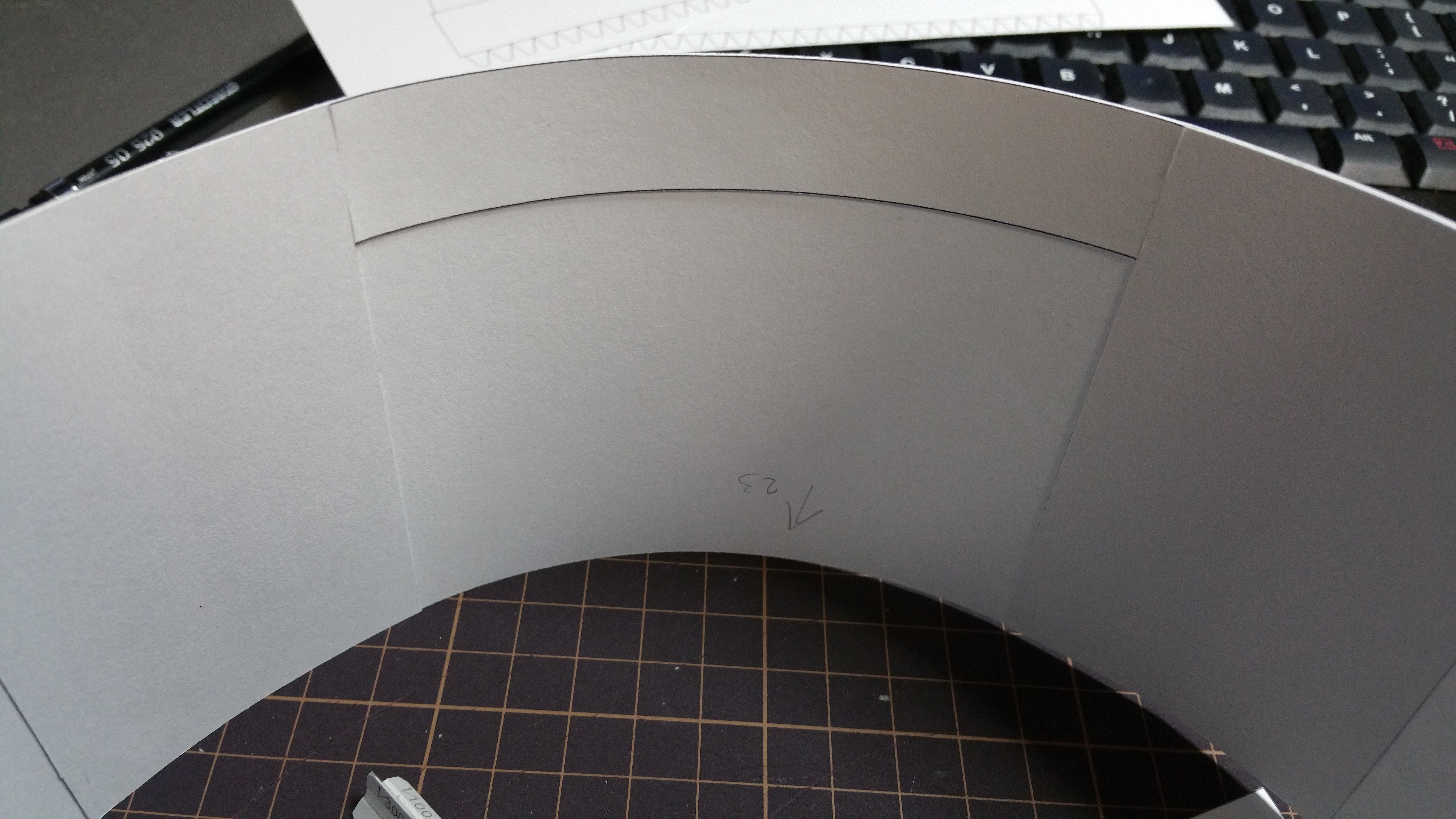

Only difference for the last white section is there is no ring former inside. It will go into the last part of the structure that's why there is a different joiner at the top. The alignment for all the parts will follow the system tunnel markings.
Only difference for the last white section is there is no ring former inside. It will go into the last part of the structure that's why there is a different joiner at the top. The alignment for all the parts will follow the system tunnel markings.
Thanks Mate, I knew it was going to be big...but I had no idea it was going to be this big. It's pretty cool.
Heard similar to this before..... From an advert about a little blue pill, I think.......
Touché.Heard similar to this before..... From an advert about a little blue pill, I think.......

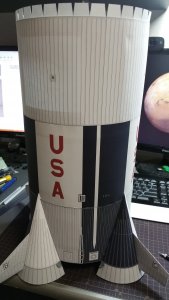

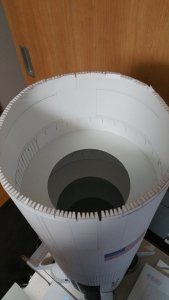

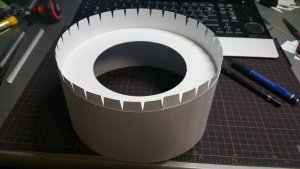

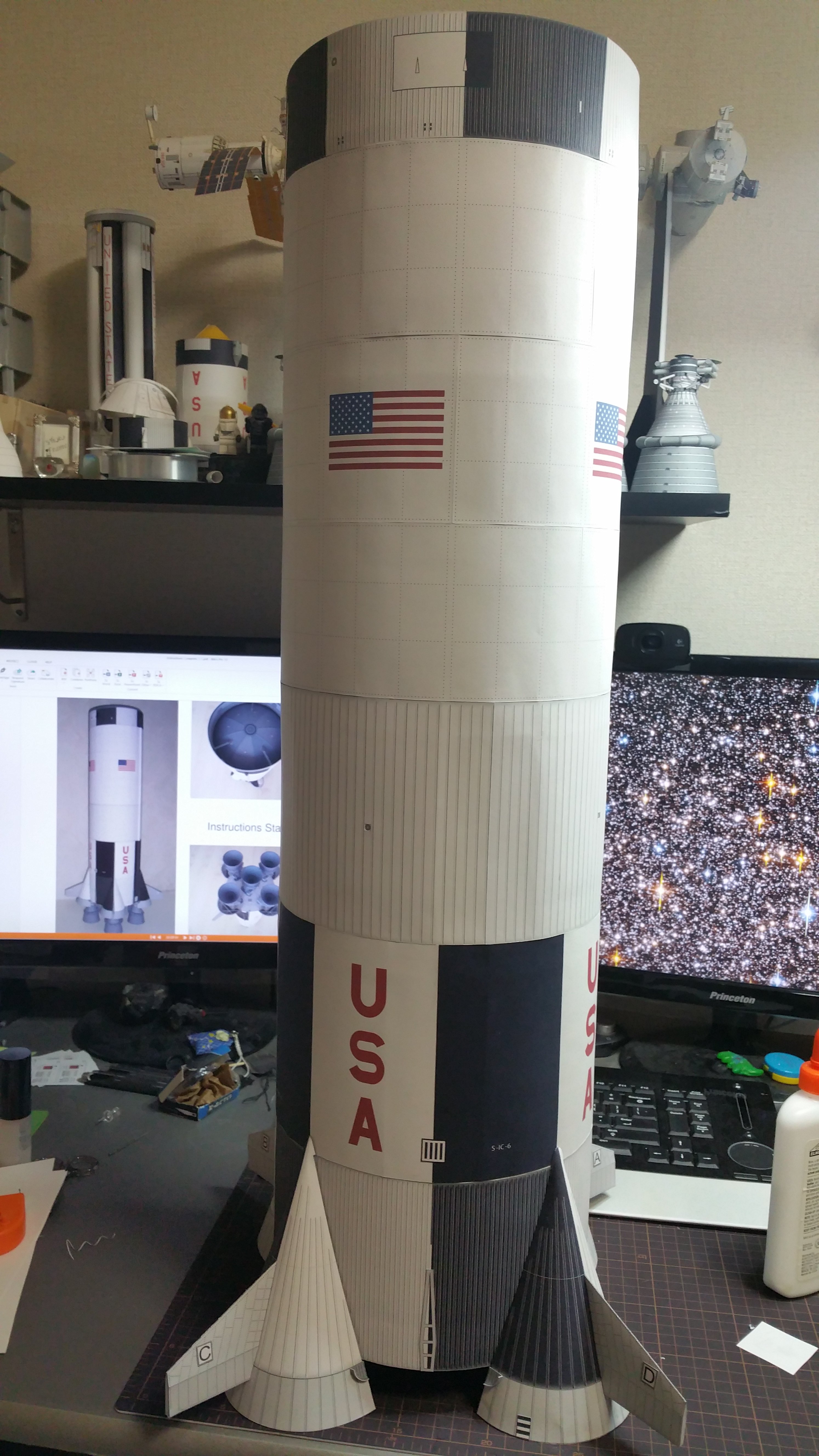

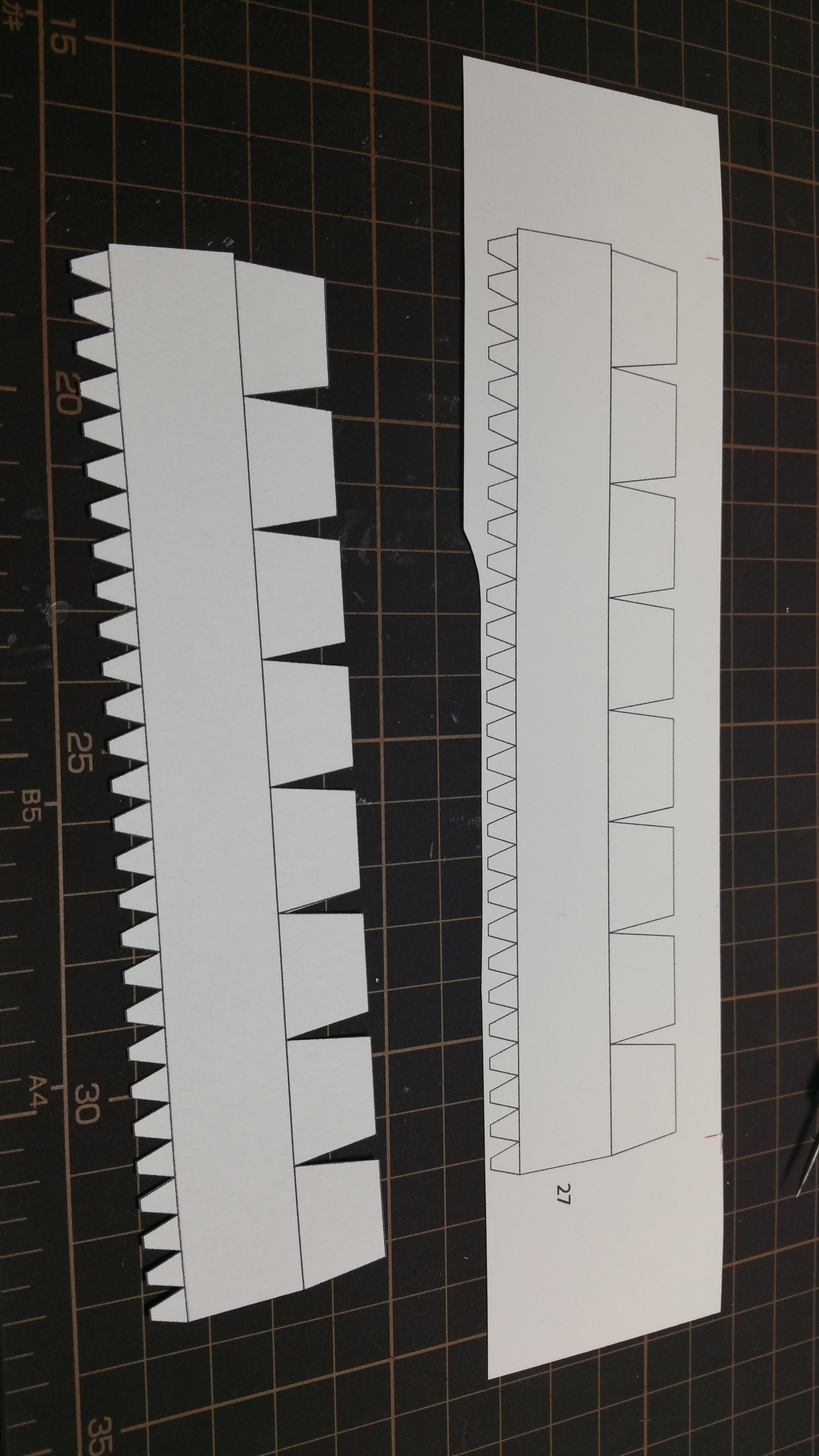

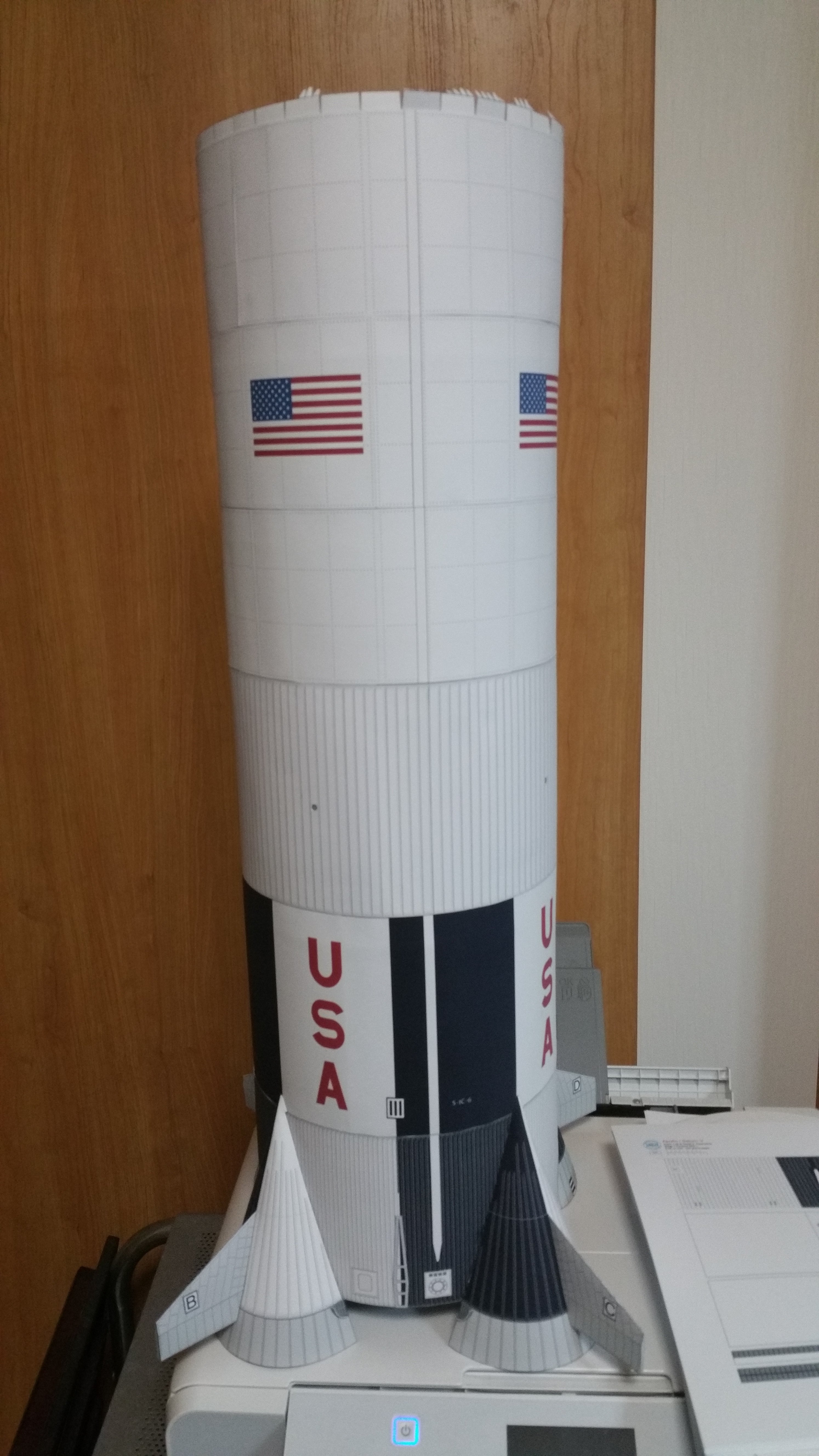

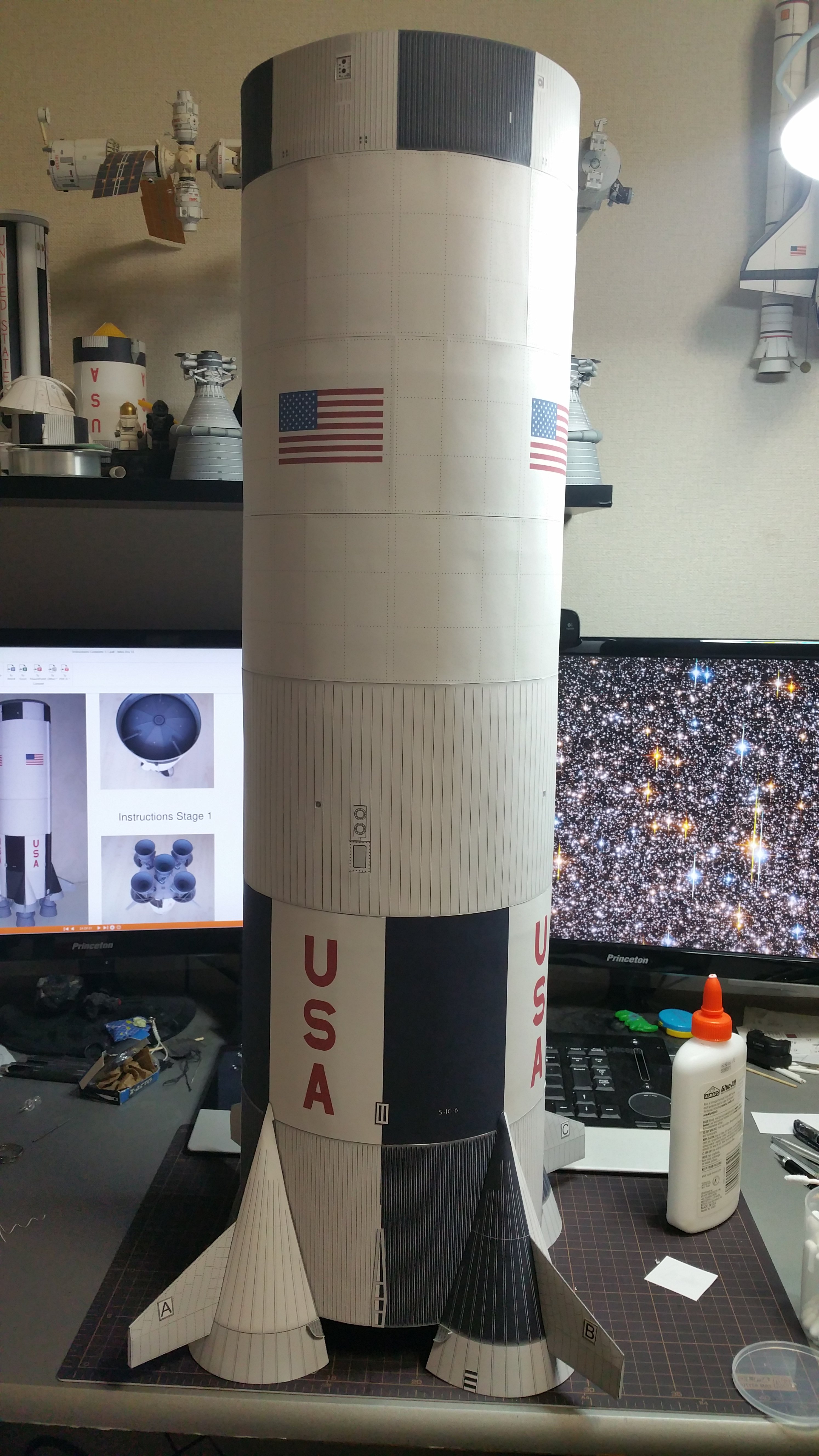

Well, it's been a while to get the sizing right on the top. I had to rebuild it about 4 times to get it to fit correctly. Fortunately, it's finally on. Now to build the top on the internal tank and I will be that much closer to completing the S-IVB.

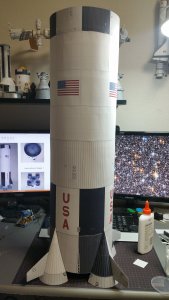

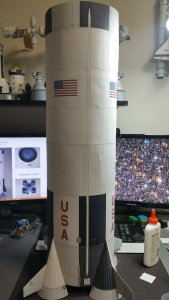

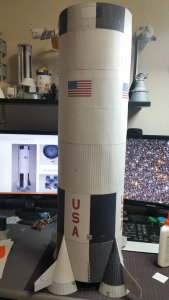

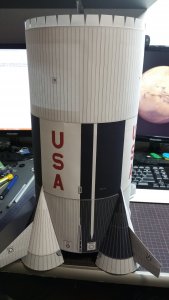

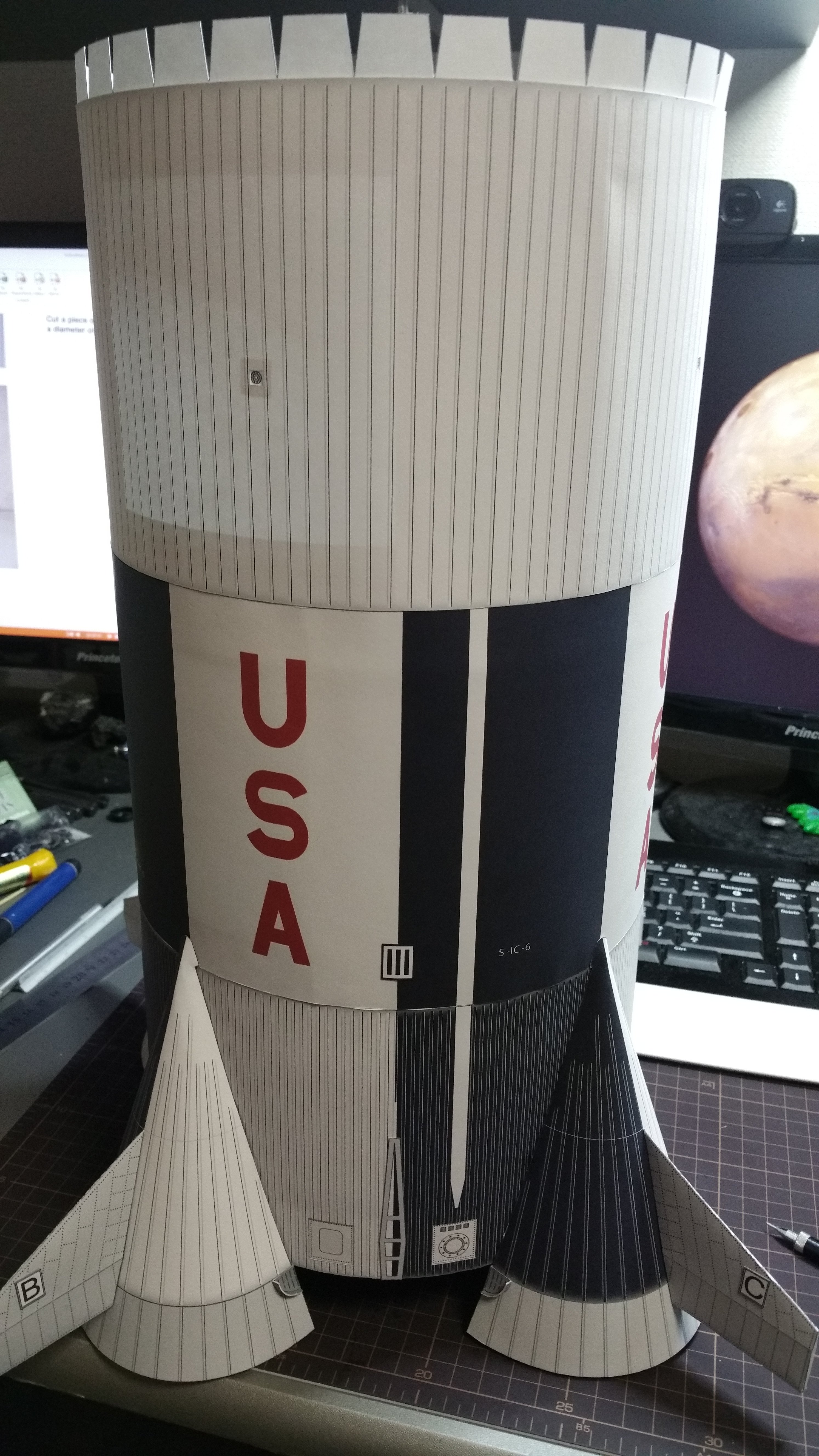

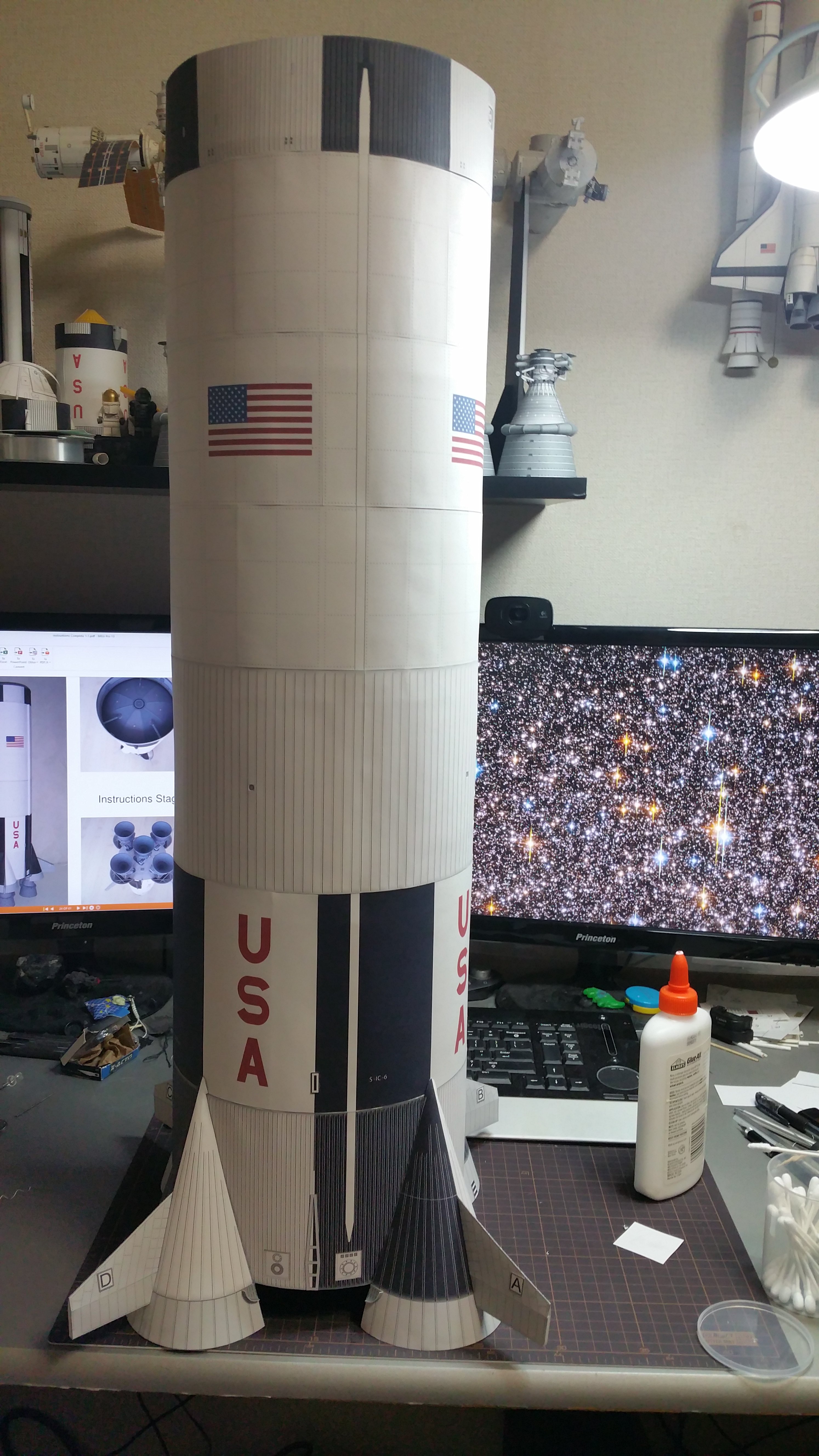

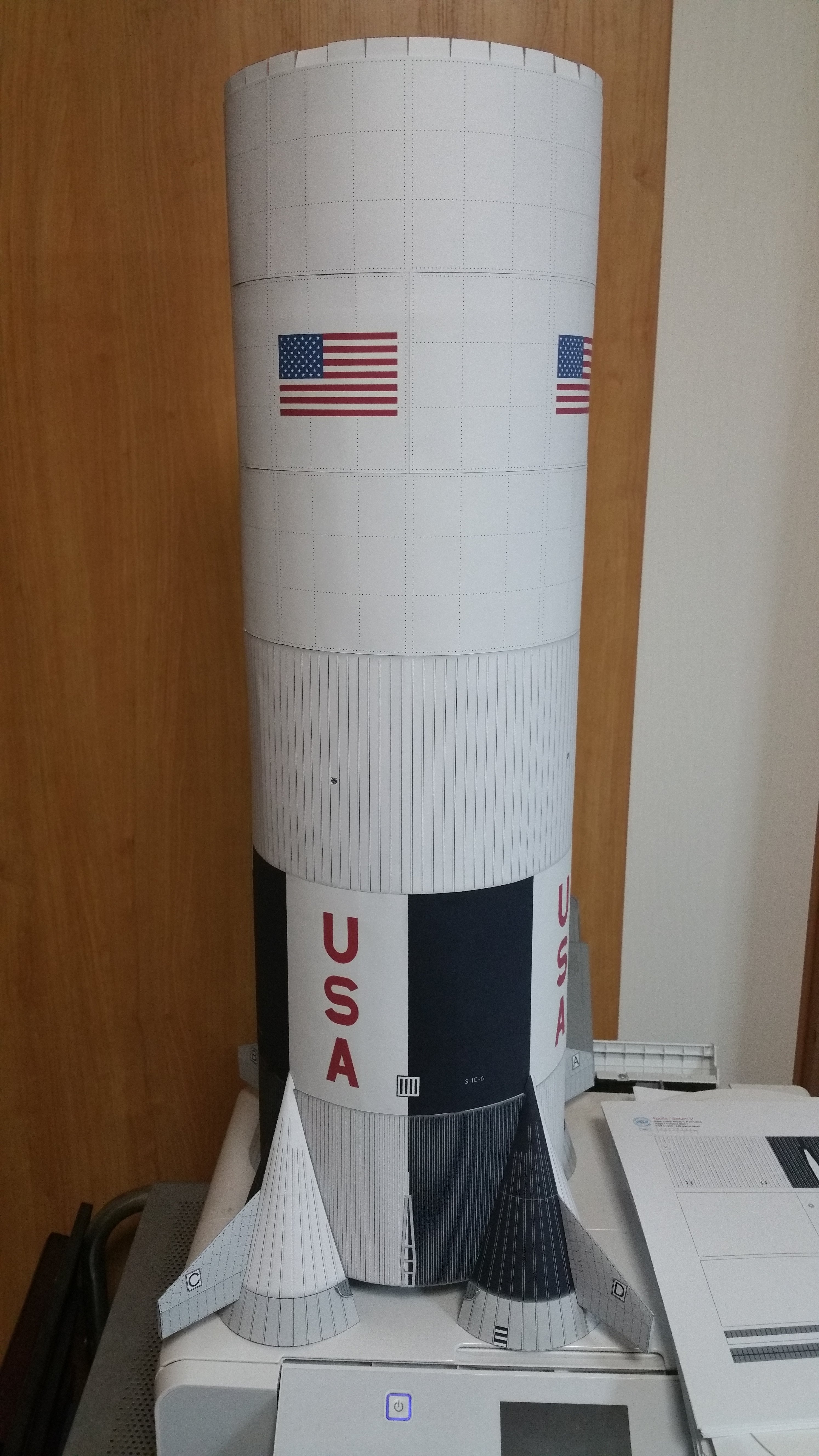

And here it is attached. The markings are as close to accurate as I could get them.
The best part is, I get to put the engines on soon.thumbsupAnd here it is attached. The markings are as close to accurate as I could get them.
