Delta II (Model from Erik te Groen)

[firestarter83]

Next model up for my rocket garden is the Delta II.
Only modifications I made was to re-scale to 1:144 and remove the logos to make a generic model.

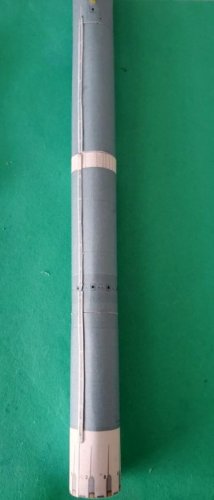

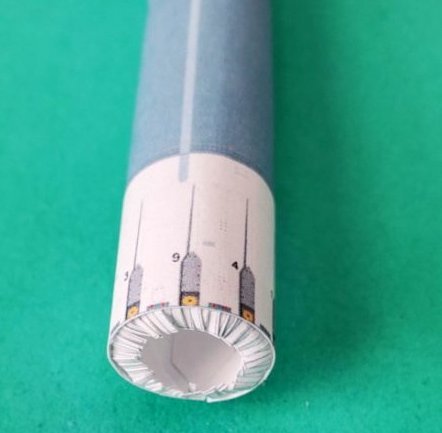

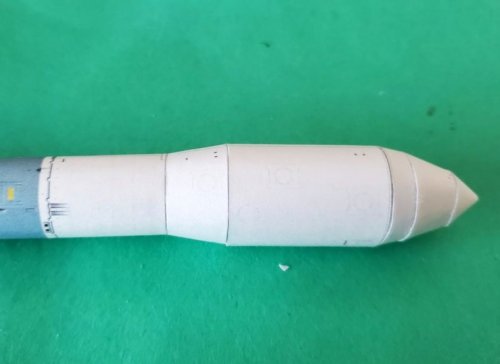

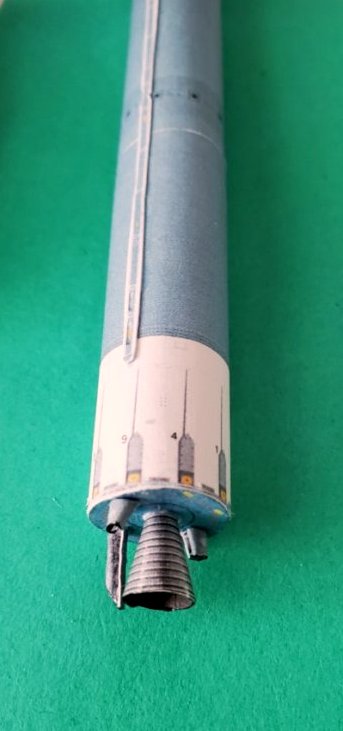

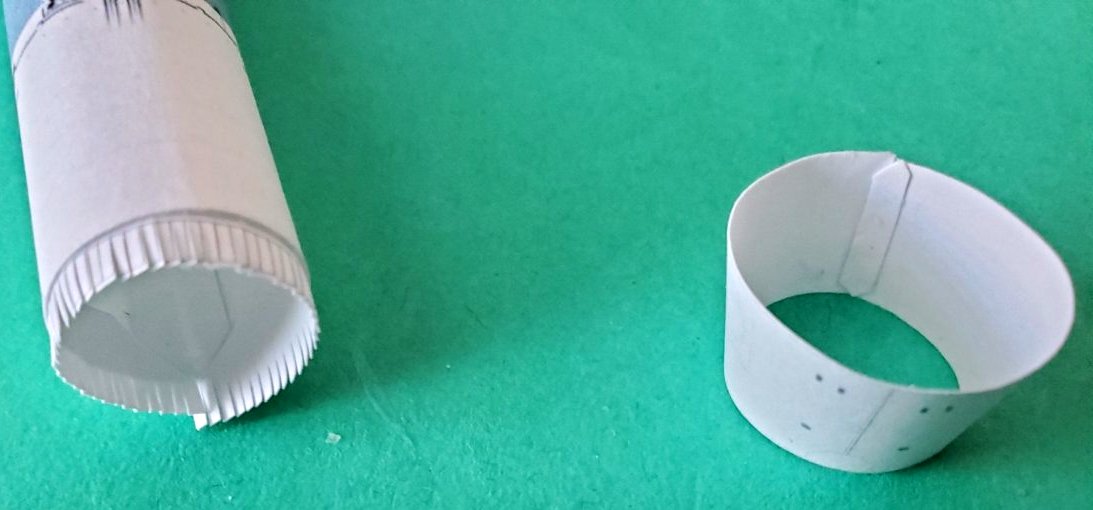

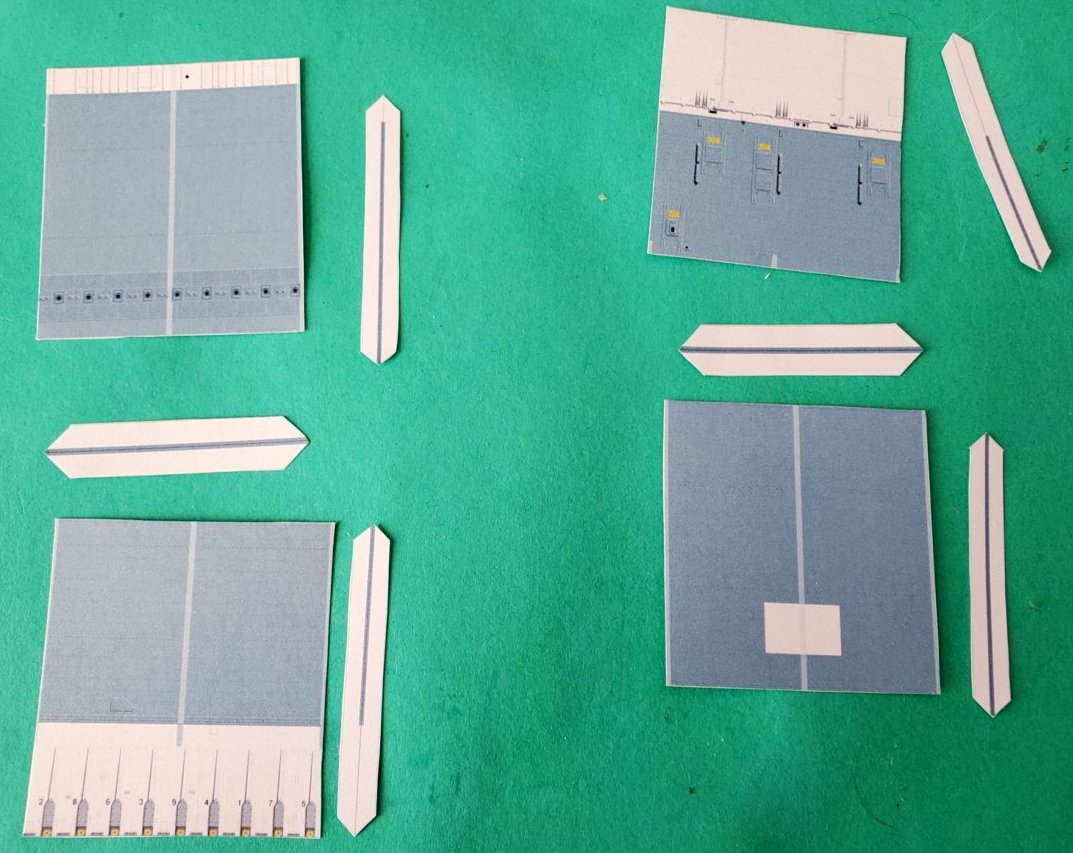

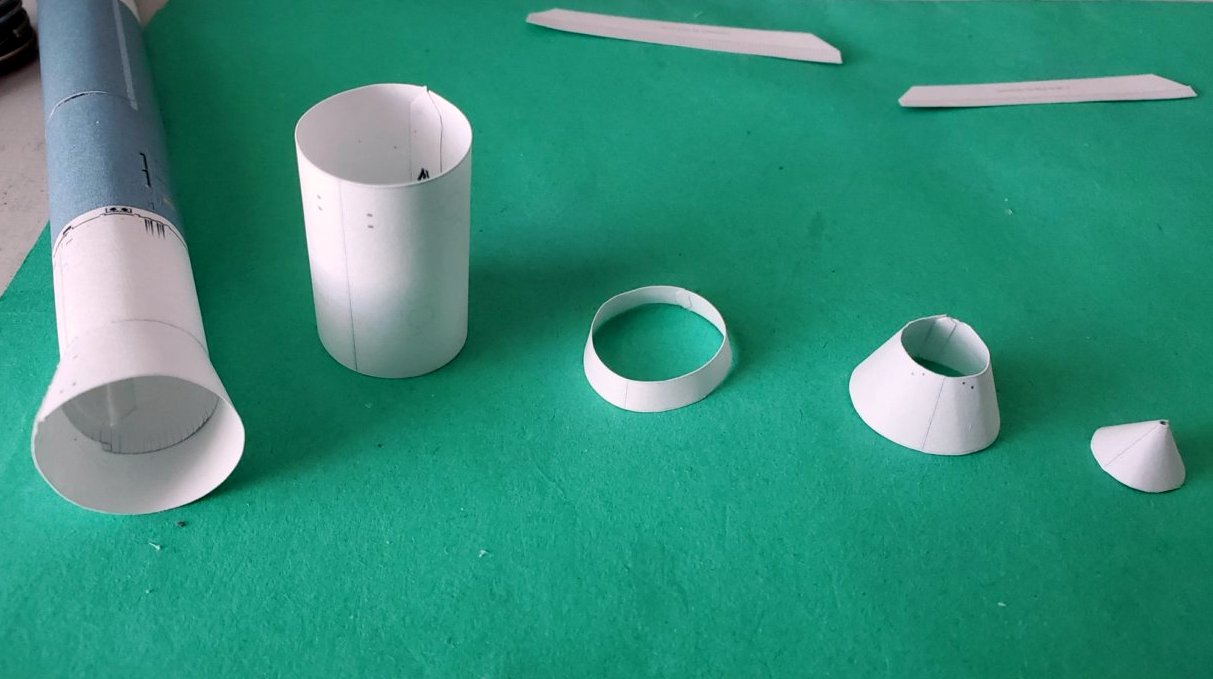

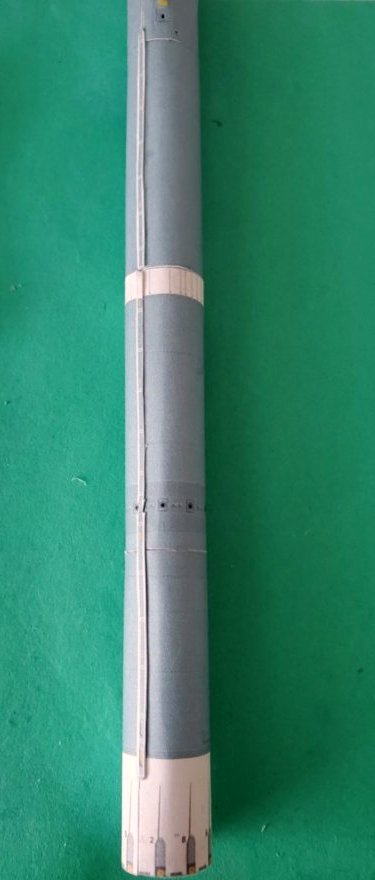

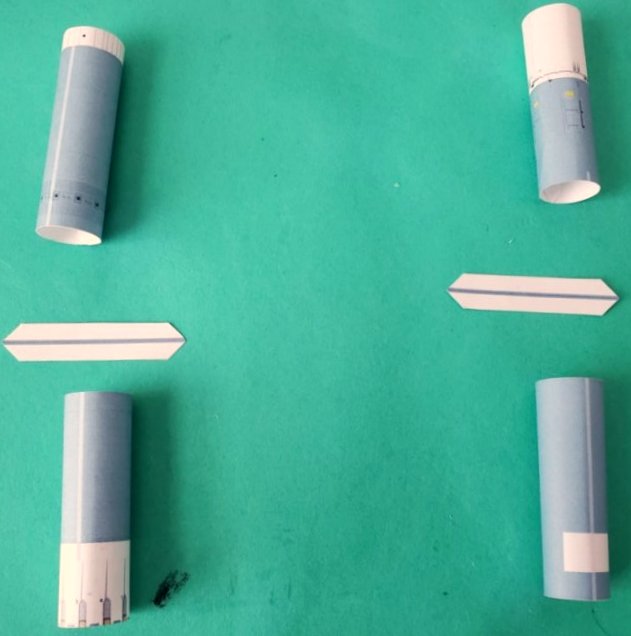

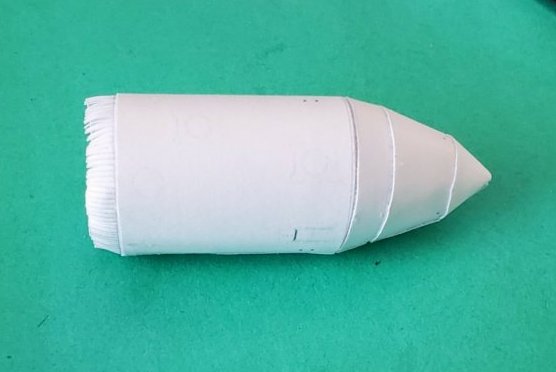

Done with the main body as of yesterday, moving on to the 9 SRBs, won't take long just lots of rolling small tubes!



[Rhaven Blaack]

You are off to a great start on this project! I am looking forward to seeing how it turns out!



[mijob]

Nice start looking forward to see your progress.



[firestarter83]

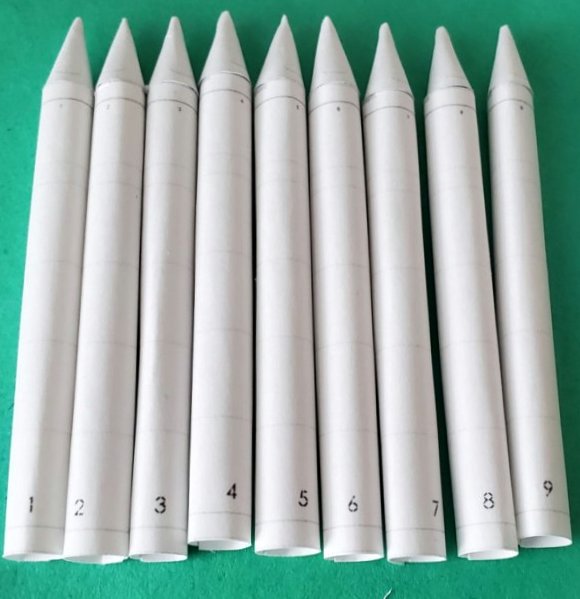

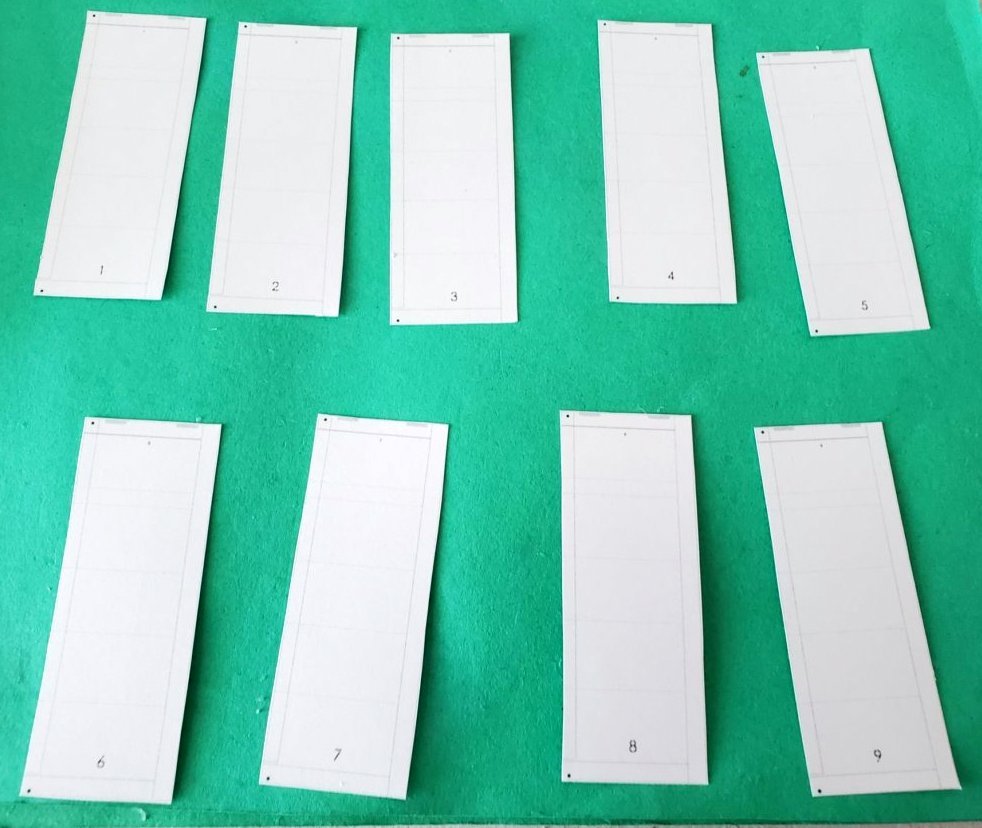

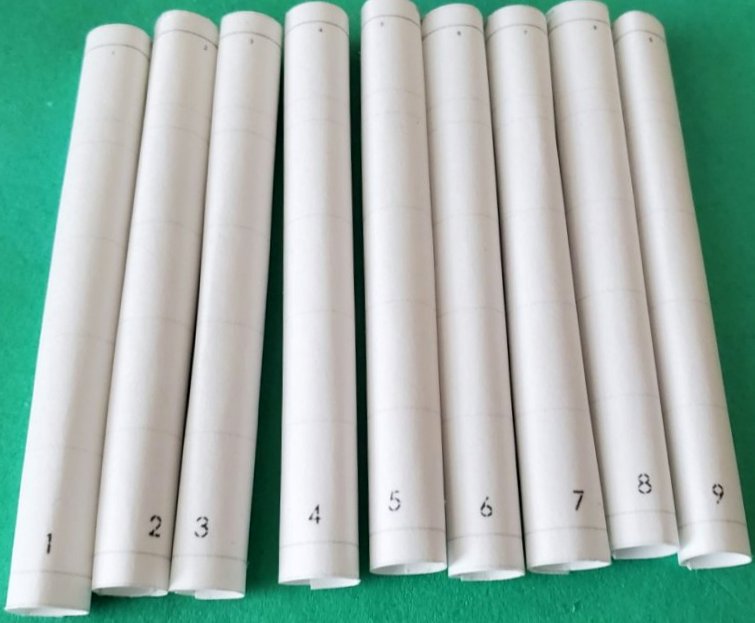

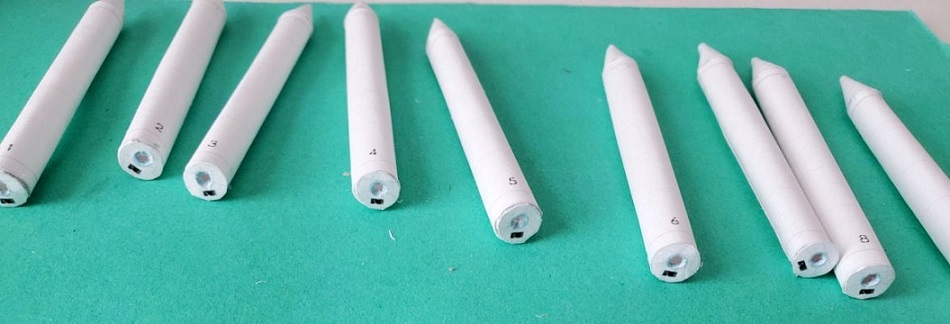

Thanks guys! Got the SRBs all rolled up/assembled yesterday afternoon.

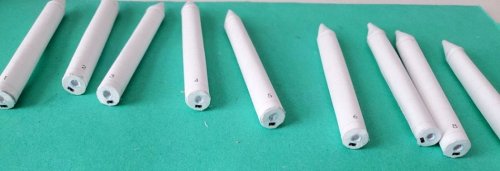

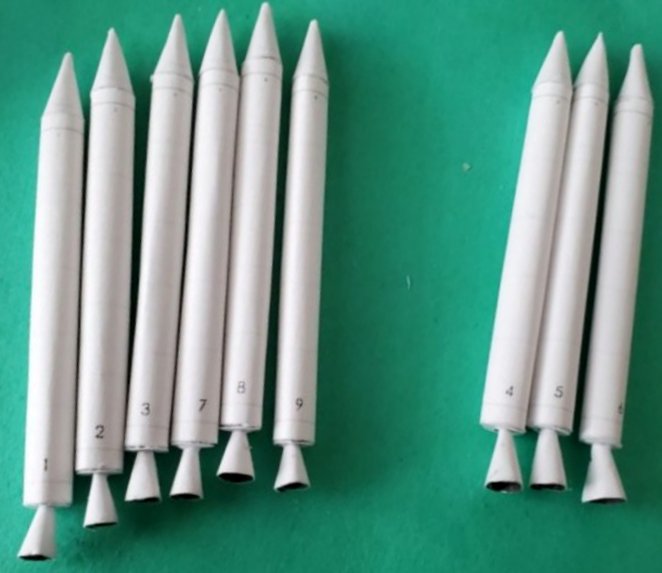

6 ground start versions on the left, 3 air-start versions with larger nozzles on the right.

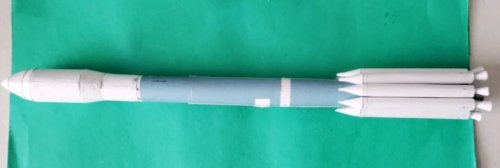

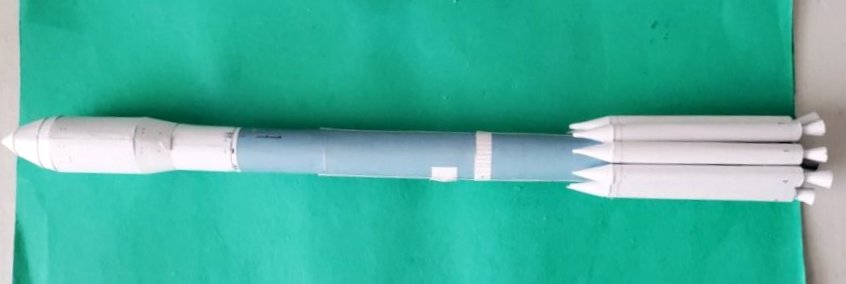

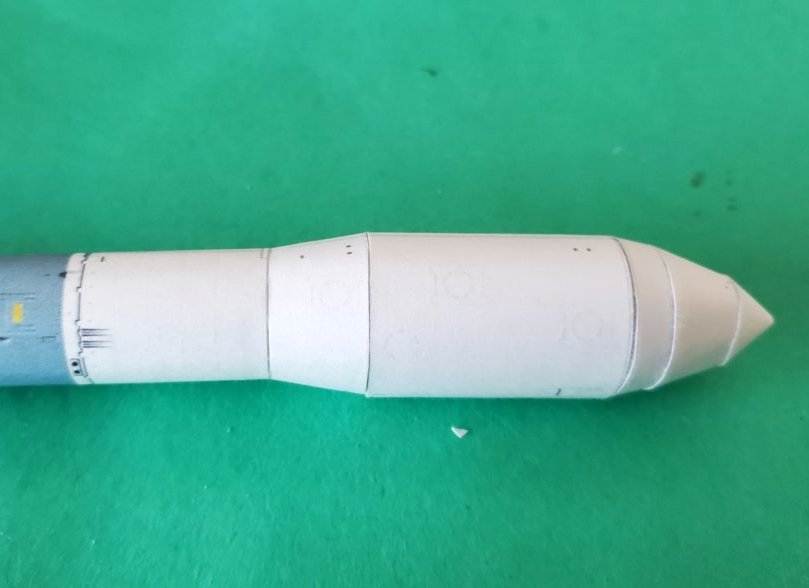

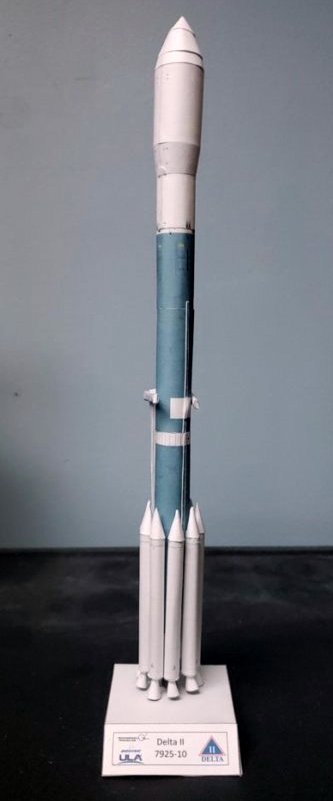

And the finished model!



[mijob]

That;'s a nice rockket.



[Rhaven Blaack]

That looks GREAT!!!



[Revell-Fan]

Very nice!



[zathros]

I bet with an ESTES rocket mounted in the bottom, that would really take off quite nicely!



[Yorokobi]

Great article, thanks. I think it will be very useful when I start Erik's model.



[micahrogers]

A GREAT model! And I agree with Z, mount a D6 estes motor and say "Goodbye".



[zathros]

Estes C6 5, with a chute packed, that way you have a chance of recovering it.
